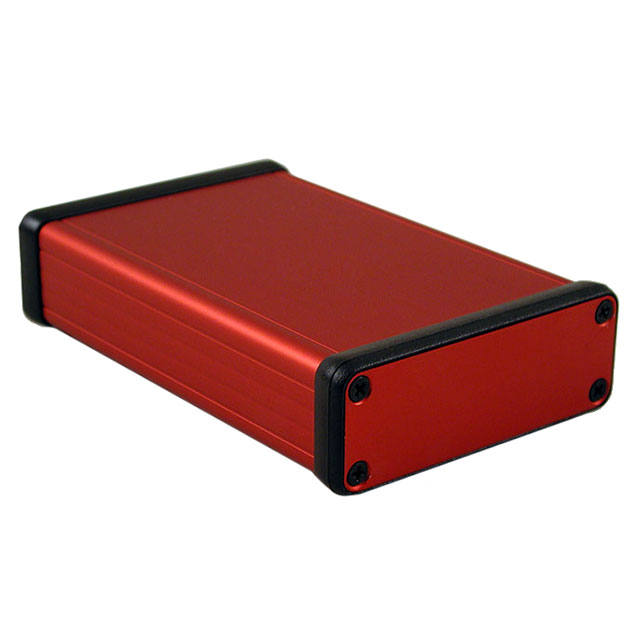

1455J1201RD

Active

Hammond Manufacturing

BOX ALUM RED 4.72"L X 3.07"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1455J1601 Drawing

1455J1201RD

Active

Hammond Manufacturing

BOX ALUM RED 4.72"L X 3.07"W

Deep-Dive with AI

Documents1455J1601 Drawing

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.84
		5	$ 23.38
		10	$ 21.92
		25	$ 20.46
		50	$ 20.10
		100	$ 19.73
		250	$ 19.44
		500	$ 19.00

Description

General part information

1455 Series

Box Aluminum Red End Panel(s) 4.724" L x 3.071" W (120.00mm x 78.00mm) X 1.063" (27.00mm)

Documents

Technical documentation and resources

1455J1601 Drawing

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1455J1201RD	1455 Series

Accessory Type	-	Mounting Brackets, Flange
Area (L x W)	94 cm²	12.9 - 275 in²
Area (L x W)	14.5 in²	3.95 - 42.6 in˛
Area (L x W)	-	83 cm²
Area (L x W)	-	9 - 35 in²
Area (L x W)	-	58.1 - 226 cm²
Area (L x W)	-	85 - 363 cm²
Area (L x W)	-	13.1 - 56.3 in²
Area (L x W)	-	6.7 in²
Color	Red	Blue, Black, Clear, Red, Translucent - Red, Natural, Translucent - Blue, Yellow, Unpainted
Container Type	Box	Box
Design	End Panel(s)	End Panel(s), Cover Included
Drive Type	-	Phillips
Features	Card Guides	Card Guides, Mounting Flange, Self Tapping
For Use With/Related Products	-	1455Q Series, 1455P Series, 1455C Series, 1455N Series, 1455J Series, 1455K, 1455T Series, 1455R Series, 1455B Series, 1455A Series, 1455D Series, 1455NC Series
Height	-	1.201 - 1.693 in
Height	-	30.51 - 43 mm
Height [z]	27 mm	11.99 - 60.76 mm
Height [z]	1.063 in	0.472 - 2.392 in
Length - Overall	-	0.375 in
Length - Overall	-	9.53 mm
Length - Overall	-	0.375 in
Material	Aluminum	Aluminum, Polycarbonate (PC), ABS
Plating	-	Black Oxide
Screw Head Type	-	Flat Head
Size / Dimension	-	0.057 - 0.453 "
Size / Dimension	-	0.059 - 11.51 mm
Size / Dimension	-	103 - 120 mm
Size / Dimension	-	77.93 - 81.13 mm
Size / Dimension	-	1.5 - 8.99 mm
Size / Dimension	-	30.12 - 42.93 mm
Size / Dimension [x]	4.724 "	1.67 - 8.74 in
Size / Dimension [x]	120 mm	3.068 - 222 mm
Size / Dimension [y]	3.071 "	0.472 - 6.496 in
Size / Dimension [y]	78 mm	1.186 - 165 mm
Thickness	1.52 mm	1.2 - 2.29 mm
Thickness	0.06 in	0.047 - 0.09 in
Thread Size	-	#6
Type	-	Panel, End
Weight	0.38 lb	0.1 - 1.3 lb
Weight	172.37 g	45.36 - 589.7 g

1455 Series

END PANEL ALUM BLUE 10/PACK

...

Part	Material	For Use With/Related Products	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Container Type	Height [diameter]	Height [diameter]	Thickness	Thickness	Design	Area (L x W)	Area (L x W)	Plating	Weight	Weight	Features	Size / Dimension	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1455QALBU-10	Aluminum	1455Q Series	Blue	4.913 in	50.9 mm	0.057 "	124.79 mm	1.45 mm	2.004 in	Panel, End
Hammond Manufacturing 1455L802BK	Aluminum		Black								Box	1.201 in	30.51 mm	0.059 in	1.5 mm	End Panel(s)	12.9 in²	83 cm²
Hammond Manufacturing 1455PAL-10	Aluminum	1455P Series	Clear	4.933 "	30.43 mm	0.059 in	125.3 mm	1.5 mm	1.198 "	Panel, End
Hammond Manufacturing 1455MSFL100BK																			Black Oxide
Hammond Manufacturing 1455L1201RD	Aluminum		Red	4.724 "					4.055 in		Box	1.201 in	30.51 mm	0.06 in	1.52 mm	End Panel(s)	124 cm˛			0.4 lb	181.44 g	Card Guides	103 mm, 120 mm	19.2 in˛
Hammond Manufacturing 1455L2202BK	Aluminum		Black	8.661 in	103 mm		219.99 mm		4.055 in		Box	1.201 in	30.51 mm	0.06 in	1.52 mm	End Panel(s)				0.66 lb	299.37 g	Card Guides			35 in²	226 cm²
Hammond Manufacturing 1455KPLTRD	Polycarbonate (PC)		Translucent - Red	3.194 "	46.13 mm	0.354 in	81.13 mm	8.99 mm	1.816 "
Hammond Manufacturing 1455CPLRED	ABS	1455C Series	Red	2.249 "	26.14 mm	0.354 in	57.12 mm	8.99 mm	1.029 "
Hammond Manufacturing 1455L1201BK	Aluminum		Black	4.724 "					4.055 in		Box	1.201 in	30.51 mm	0.06 in	1.52 mm	End Panel(s)	124 cm˛			0.4 lb	181.44 g	Card Guides	103 mm, 120 mm	19.2 in˛
Hammond Manufacturing 1455L1601	Aluminum		Natural	6.299 "	103 mm		159.99 mm		4.055 in		Box	1.201 in	30.51 mm	0.06 in	1.52 mm	End Panel(s)	165 cm˛			0.5 lbs	226.8 g	Card Guides		25.5 in˛
