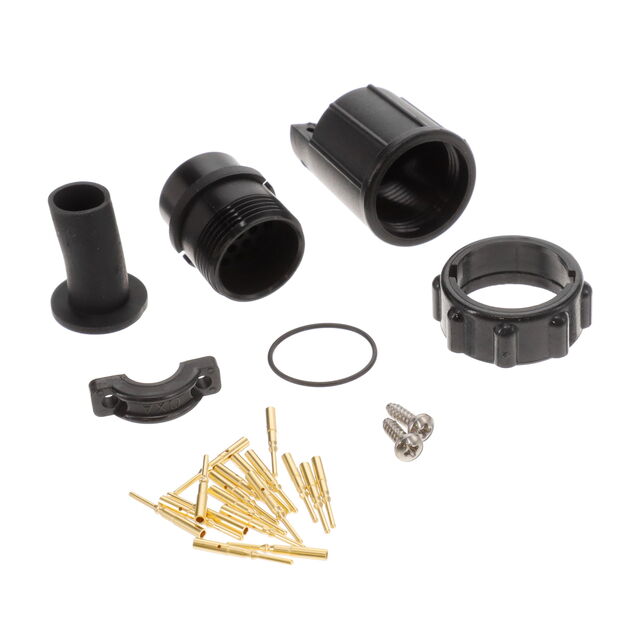

13280-18PG-331

Active

Conxall/Switchcraft

CONN PLUG MALE 18POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 18POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN PLUG MALE 18POS GOLD CRIMP

Part	Connector Type	Backshell Material, Plating	Contact Material	Color	Ingress Protection	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Voltage Rating	Orientation	Fastening Type	Contact Finish - Mating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Shielding	Mounting Type	Primary Material	Features	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 13280-18PG-326	Male Pins, Plug	Nylon, Polyamide (PA)	Brass	Black	Weathertight	Crimp	-40 °C	115 °C	18	600 V	Keyed	Bayonet Lock	Gold	0.26 in	7.62 mm	0.3 in	6.6 mm	Unshielded	Free Hanging (In-Line)	Plastic	Backshell, Cable Clamp
Conxall/Switchcraft 13280-18PG-321	Male Pins, Plug	Nylon, Polyamide (PA)	Brass	Black	Weathertight	Crimp	-40 °C	115 °C	18	600 V	Keyed	Bayonet Lock	Gold					Unshielded	Free Hanging (In-Line)	Plastic	Backshell, Cable Clamp	0.21 in	5.33 mm	6.35 mm	0.25 in
Conxall/Switchcraft 13280-18PG-331	Male Pins, Plug	Nylon, Polyamide (PA)	Brass	Black	Weathertight	Crimp	-40 °C	115 °C	18	600 V	Keyed	Bayonet Lock	Gold					Unshielded	Free Hanging (In-Line)	Plastic	Backshell, Cable Clamp					9.65 mm	0.31 in, 0.38 in	7.87 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Plug, Male Pins Crimp

Technical documentation and resources

No documents available
