357-030-521-178
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-030-521-178
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-030-521-178 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
357-030 Series
...
| Part | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Number of Positions | Contact Finish | Read Out | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Color | Mounting Type | Contact Material | Number of Positions/Bay/Row [custom] | Contact Type | Card Type | Termination | Pitch [x] | Pitch [x] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | 60 | Gold | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Black | Through Hole | Copper Alloy | 30 | Semi Bellows | Non Specified - Dual Edge | Wire Wrap | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | 60 | Gold | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Black | Through Hole Right Angle | Copper Alloy | 30 | Semi Bellows | Non Specified - Dual Edge | Solder | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | 1 | -40 °C | 105 ░C | 1 | 30 | Tin | Single | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Black | Through Hole | Copper Alloy | 30 | Semi Bellows | Non Specified - Single Edge | Wire Wrap | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |||
EDAC Inc. | 2 | -40 °C | 105 ░C | 1 | 60 | Tin | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Black | Surface Mount | Copper Alloy | 30 | Semi Bellows | Non Specified - Dual Edge | Solder Eyelet(s) | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | 2 | -40 °C | 105 ░C | 2 | 30 | Tin | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Black | Board Edge Straddle Mount | Copper Alloy | 15 | Semi Bellows | Non Specified - Dual Edge | Solder Eyelet(s) | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Card Extender | ||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 2 | 30 | Gold | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Black | Through Hole | Copper Alloy | 15 | Semi Bellows | Non Specified - Dual Edge | Solder Eyelet(s) | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 2 | 30 | Gold | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Black | Through Hole Right Angle | Copper Alloy | 15 | Semi Bellows | Non Specified - Dual Edge | Solder | 0.156 in | 3.96 mm | Floating Bobbin Flush Mount | 2.95 mm | 0.116 in | |
EDAC Inc. | 1 | -40 °C | 105 ░C | 1 | 30 | Tin | Single | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Black | Through Hole Right Angle | Copper Alloy | 30 | Semi Bellows | Non Specified - Single Edge | Solder | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | 60 | Gold | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Black | Through Hole Right Angle | Copper Alloy | 30 | Semi Bellows | Non Specified - Dual Edge | Solder | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1 | 60 | Gold | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Black | Through Hole | Copper Alloy | 30 | Semi Bellows | Non Specified - Dual Edge | Solder | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
357-030 Series

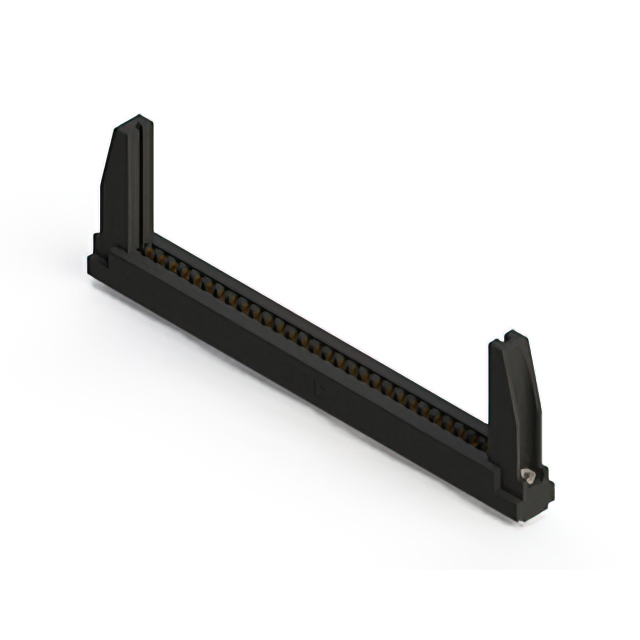

60 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
