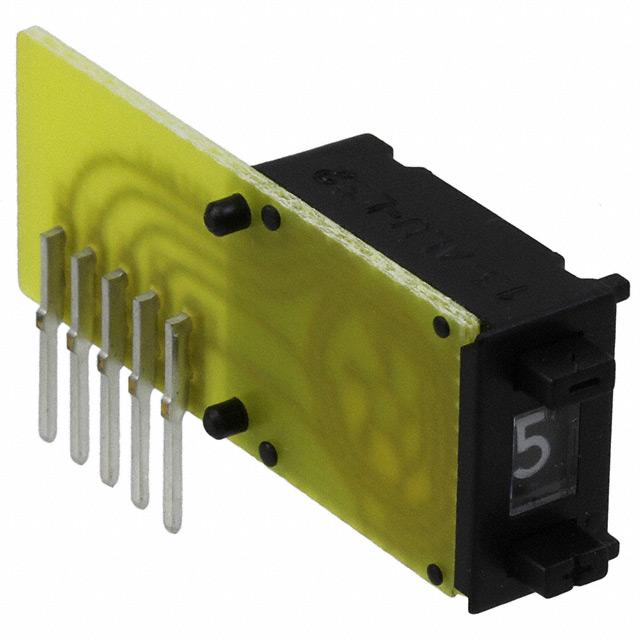

3-1437601-2

Active

TE Connectivity Raychem Cable Protection

SWITCH THUMB BCD COMP 0.4VA 20V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH THUMB BCD COMP 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	3-1437601-2

Actuator Type	Pushwheel
Color	Black
Contact Finish	Gold
Contact Material	Copper Tin Alloy
Contact Rating @ Voltage	0.4 VA, 20 VAC/DC
Depth Behind Flange	35.81 mm
Display Characters - Height	0.122 in
Display Characters - Height	3.1 mm
Electrical Life	100000 Cycles
End Caps	Sold Separately
Housing Material	Polyphenylene Oxide (PPO)
Mounting Type	Screw, Panel Mount, Right Angle
Number of Sections	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Output Code	BCD Complement
Read Out [Max]	9
Read Out [Min]	0
Section Width [x]	0.3 in
Section Width [x]	7.62 mm
Termination Style	PC Pin

Part	Contact Rating @ Voltage	Color	Mounting Type	Contact Finish	Contact Material	Display Characters - Height	Display Characters - Height	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	End Caps	Actuator Type	Housing Material	Read Out [Min]	Read Out [Max]	Output Code	Number of Sections	Depth Behind Flange	Section Width [x]	Section Width [x]	Electrical Life
TE Connectivity Raychem Cable Protection 3-1437601-2	0.4 VA 20 VAC/DC	Black	Panel Mount Right Angle Screw	Gold	Copper Tin Alloy	0.122 in	3.1 mm	-10 °C	60 °C	PC Pin	Sold Separately	Pushwheel	Polyphenylene Oxide (PPO)	0	9	BCD Complement	1	35.81 mm	0.3 in	7.62 mm	100000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 25.70

General part information

Thumbwheel Switch BCD Complement 0.4VA @ 20VAC/DC Panel Mount, Screw, Right Angle
