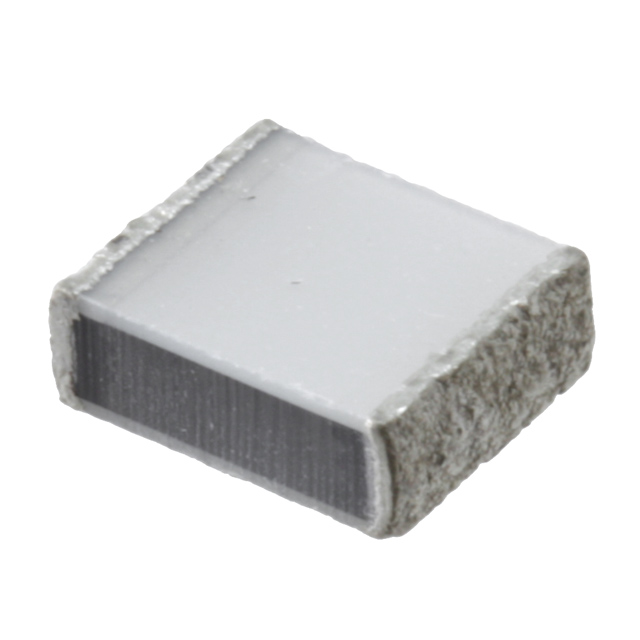

F161PP683K100V

Active

KEMET

CAP FILM 0.068UF 10% 100VDC 2220

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.068UF 10% 100VDC 2220

Technical Specifications

Parameters and characteristics for this part

Specification	F161PP683K100V

Applications	Automotive
Capacitance	0.068 µF
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Height - Seated (Max) [Max] [z]	3.2 mm
Height - Seated (Max) [Max] [z]	0.126 in
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	5750 Metric
Package / Case	2220
Ratings	AEC-Q200
Size / Dimension [x]	0.224 in
Size / Dimension [x]	5.7 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Termination	Solder Pads
Tolerance	10 %
Voltage Rating - AC	63 V
Voltage Rating - DC	100 V

Part	Capacitance	Termination	Package / Case	Package / Case	Mounting Type	Tolerance	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Ratings	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC
KEMET F161PP683K100V	0.068 µF	Solder Pads	5750 Metric	2220	Surface Mount	10 %	100 V	3.2 mm	0.126 in	Automotive	AEC-Q200	0.224 in	5.7 mm	5 mm	0.197 "	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	-55 °C	125 °C	63 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.068 µF Film Capacitor 63V 100V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked 2220 (5750 Metric)
