LCBS-18-01
ActiveEssentra Access Solutions

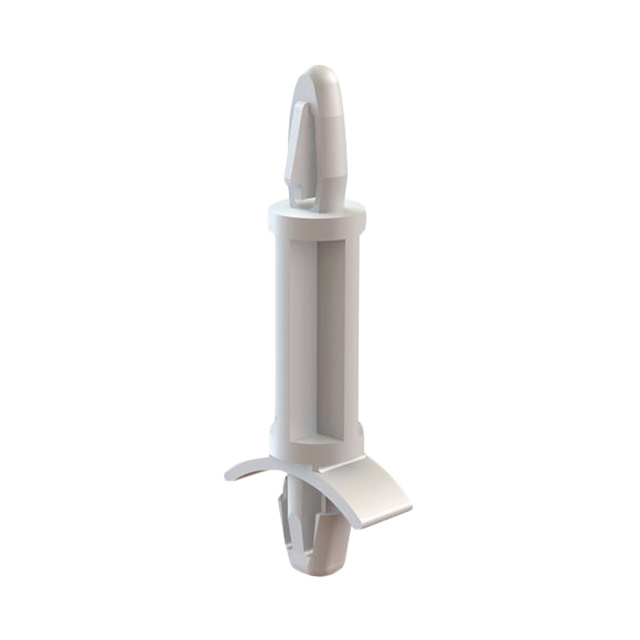

BRD SPT SNAP LOCK NYLON 1 1/8"
Deep-Dive with AI
Search across all available documentation for this part.
LCBS-18-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 1 1/8"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCBS-18-01 |
|---|---|
| Between Board Height | 28.58 mm |
| Between Board Height | 1 1/8 |
| Between Board Height | 1.125 in |
| Features | Winged |
| Holding Type | Snap Lock |
| Length - Overall [x] | 47.2 mm |
| Length - Overall [x] | 1.858 in |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.187 in |
| Mounting Hole Diameter [diameter] | 4.75 mm |
| Mounting Hole Diameter [diameter] | 3 in |
| Mounting Panel Thickness [Max] | 1.98 mm |
| Mounting Panel Thickness [Max] | 0.078 " |
| Mounting Panel Thickness [Min] | 0.79 mm |
| Mounting Panel Thickness [Min] | 0.031 in |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.49 | |
| 5 | $ 0.42 | |||
| 10 | $ 0.35 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.31 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.24 | |||
Description
General part information
LCBS-18 Series
Board Support Snap Lock / Snap Lock Nylon 1.125" (28.58mm) 1 1/8"
Documents
Technical documentation and resources
No documents available
