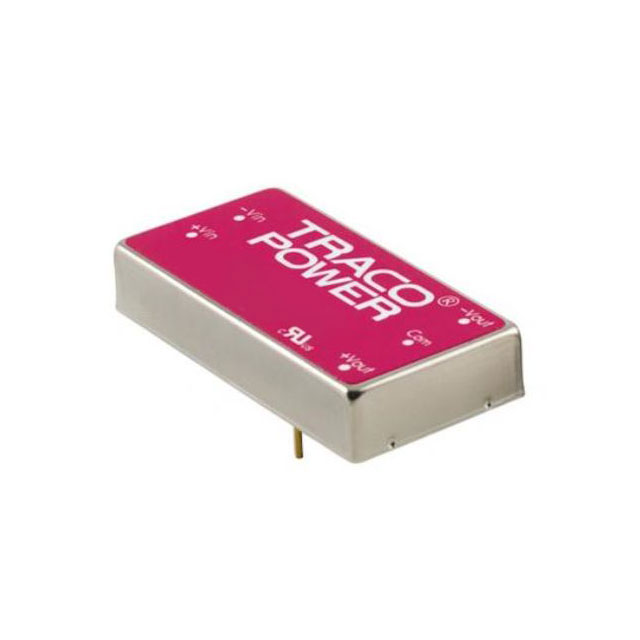

TEN 12-4810

Traco Power

DC DC CONVERTER 3.3V 7.9W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TEN 12-4810

Traco Power

DC DC CONVERTER 3.3V 7.9W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEN 12-4810

Applications	ITE (Commercial)
Current - Output (Max) [Max]	2.4 A
Efficiency	78 %
Features	OVP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4 Lead
Package / Case	5-DIP Module
Power (Watts)	7.9 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	3.3 V

TEN 12 Series

Part	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Max) [Max]	Features	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Input (Min) [Min]	Power (Watts)	Number of Outputs	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 2	Mounting Type	Current - Output (Max)	Current - Output (Max)	Applications	Package / Case	Current - Output (Max) [Max]	Current - Output (Max)
Traco Power TEN 12-4823	15 V	1.5 kV	75 V	OCP OVP Remote On/Off SCP	84 %	85 °C	-40 °C	5-DIP Module	18 V	12 W	2	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	-15 V	Through Hole	400 mA	400 mA	ITE (Commercial)
Traco Power TEN 12-4810	3.3 V	1.5 kV	75 V	OCP OVP Remote On/Off SCP	78 %	85 °C	-40 °C	5-DIP Module	18 V	7.9 W	1	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm		Through Hole			ITE (Commercial)	4 Lead	2.4 A
Traco Power TEN 12-4811	5 V	1.5 kV	75 V	OCP OVP Remote On/Off SCP		85 °C	-40 °C	5-DIP Module	18 V	10 W	1	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm		Through Hole			ITE (Commercial)	4 Lead	2 A
Traco Power TEN 12-4822	12 V	1.5 kV	75 V	OCP OVP Remote On/Off SCP	84 %	85 °C	-40 °C	5-DIP Module	18 V	12 W	2	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	-12 V	Through Hole		500 mA	ITE (Commercial)			500 mA
Traco Power TEN 12-2422	12 V	1.5 kV	36 V	OCP OVP Remote On/Off SCP	84 %	85 °C	-40 °C	5-DIP Module	9 V	12 W	2	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	-12 V	Through Hole		500 mA	ITE (Commercial)			500 mA
Traco Power TEN 12-4821	5 V	1.5 kV	75 V	OCP OVP Remote On/Off SCP		85 °C	-40 °C	5-DIP Module	18 V	10 W	2	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	-5 V	Through Hole	1 A	1 A	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 69.90
		10	$ 60.59
		25	$ 58.59
		50	$ 57.12
		100	$ 55.69
		250	$ 49.04

Description

General part information

TEN 12 Series

Isolated Module DC DC Converter 1 Output 3.3V 2.4A 18V - 75V Input
