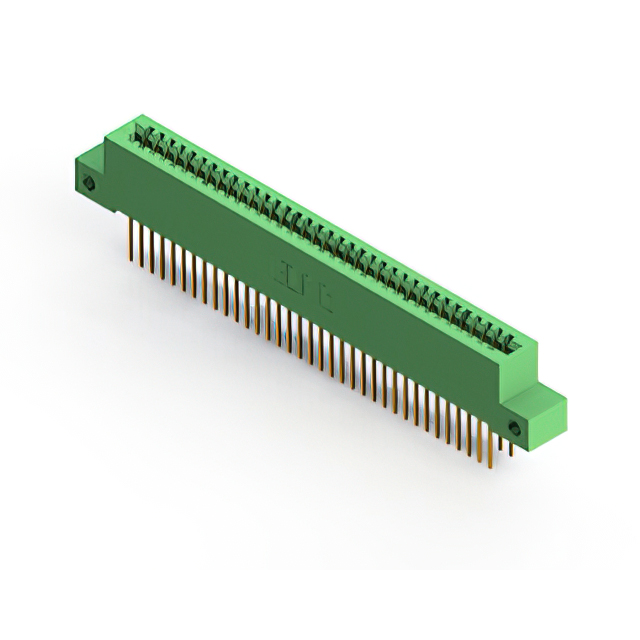

842-070-541-212

Active

EDAC Inc.

CONN EDGE DUAL FMALE 70POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

842-070-541-212

Active

EDAC Inc.

CONN EDGE DUAL FMALE 70POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	842-070-541-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	70
Number of Positions/Bay/Row [custom]	35
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

842-070 Series

Part	Mounting Type	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Material - Insulation	Termination Rows	Contact Finish	Read Out	Number of Positions	Gender	Color	Contact Type	Contact Material	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
EDAC Inc. 842-070-500-201	Through Hole	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	35	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	2	Diallyl Phthalate (DAP)	2	Gold	Dual	70	Female	Green	Cantilever	Copper Alloy
EDAC Inc. 842-070-523-201	Through Hole	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	35	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	2	Diallyl Phthalate (DAP)	2	Gold	Dual	70	Female	Green	Cantilever	Copper Alloy
EDAC Inc. 842-070-542-212	Through Hole	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	35	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	2	Diallyl Phthalate (DAP)	2	Gold	Dual	70	Female	Green	Cantilever	Copper Alloy	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 842-070-523-203	Through Hole	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	35	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	2	Diallyl Phthalate (DAP)	2	Gold	Dual	70	Female	Green	Cantilever	Copper Alloy	2.95 mm	Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 842-070-558-202	Through Hole Right Angle	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	35	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	2	Diallyl Phthalate (DAP)	2	Gold	Dual	70	Female	Green	Cantilever	Copper Alloy	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 842-070-558-208	Through Hole Right Angle	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	35	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	2	Diallyl Phthalate (DAP)	2	Gold	Dual	70	Female	Green	Cantilever	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 842-070-500-212	Through Hole	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	35	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	2	Diallyl Phthalate (DAP)	2	Gold	Dual	70	Female	Green	Cantilever	Copper Alloy	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 842-070-541-212	Through Hole	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	35	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	2	Diallyl Phthalate (DAP)	2	Gold	Dual	70	Female	Green	Cantilever	Copper Alloy	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 842-070-541-203	Through Hole	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	35	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	2	Diallyl Phthalate (DAP)	2	Gold	Dual	70	Female	Green	Cantilever	Copper Alloy	2.95 mm	Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 842-070-544-203	Through Hole	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	35	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	2	Diallyl Phthalate (DAP)	2	Gold	Dual	70	Female	Green	Cantilever	Copper Alloy	2.95 mm	Floating Bobbin Flush Mount	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 90.85

Description

General part information

842-070 Series

70 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
