430581-502

Laird Thermal Systems, Inc.

PELTIR ET20,30,F2A,0610,11,W2.25

Search across all available documentation for this part.

Laird Thermal Systems, Inc.

PELTIR ET20,30,F2A,0610,11,W2.25

Technical Specifications

Parameters and characteristics for this part

Part	Current - Max [Max]	Resistance	Size / Dimension [x]	Size / Dimension [y]	Features	Number of Stages	Qmax @ Th	Operating Temperature	Delta Tmax @ Th	Voltage - Max [Max]	Height [z]
Laird Thermal Systems, Inc. 430581-502	2 A	1.57 Ohms	12.3 mm	6.2 mm	Lead Wires Non-Sealed	1	4.1 W	80 °C	67 °C	3.4 V	1.8 mm
Laird Thermal Systems, Inc. 430581-503	2 A	1.57 Ohms	12.3 mm	6.2 mm	Lead Wires Non-Sealed	1	4.1 W	80 °C	67 °C	3.4 V	2.06 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.31

General part information

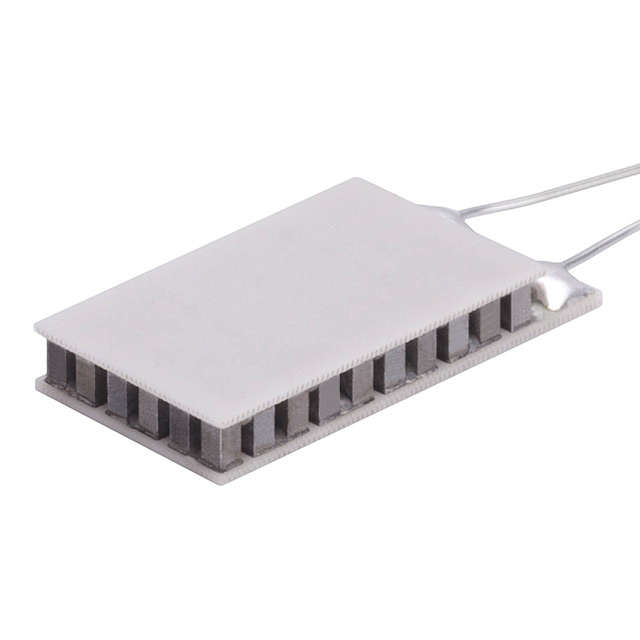

Peltier Module 4.1W @ 25°C 2 A 80°C

Technical documentation and resources
