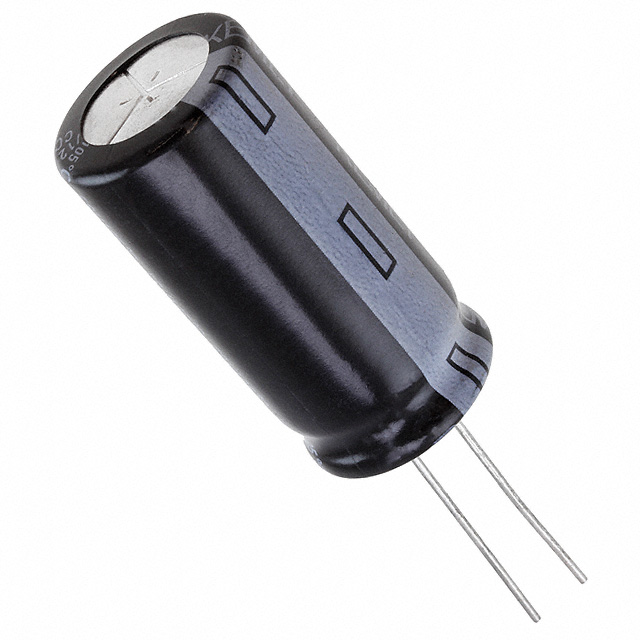

ESH228M050AN2AA

ESH228M050AN2AA

Active

ELECTROLYTIC CAPACITOR, 2200 ΜF, 50 V, ± 20%, RADIAL LEADED, 2000 HOURS @ 105°C, POLAR

ESH228M050AN2AA

ESH228M050AN2AA

Active

ELECTROLYTIC CAPACITOR, 2200 ΜF, 50 V, ± 20%, RADIAL LEADED, 2000 HOURS @ 105°C, POLAR

Description Specifications Series Pricing CAD Documents

Description

General part information

ESH228M Series

2200 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

Technical Specifications

Parameters and characteristics for this part

Specification	ESH228M050AN2AA

Applications	General Purpose
Capacitance	2200 ĄF
Height - Seated (Max)	1.496 in
Lead Spacing	0.295 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	1.7595 A, 1.53 A
Size / Dimension Diameter	0.709 in
Tolerance	20 %
Voltage - Rated	50 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ESH228M050AN2AA | Datasheet

ESH228M050AN2AA

Product Change Notice EN

Manufacturer Catalogue EN

ESH228M Series

Part	Lead Spacing	Capacitance	Mounting Type	Ripple Current	Tolerance	Lifetime	Height - Seated (Max)	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Rated	Polarization	Applications	Size / Dimension Diameter
KEMET ESH228M025AM7AA	0.295 in	2200 ĄF	Through Hole	1.23 A 1.4145 A	20 %	2000 Hrs	1.063 in	Can Radial	-40 °C	105 °C	25 VAC	Polar	General Purpose	0.63 in
KEMET ESH228M050AN2AA	0.295 in	2200 ĄF	Through Hole	1.53 A 1.7595 A	20 %	2000 Hrs	1.496 in	Can Radial	-40 °C	105 °C	50 V	Polar	General Purpose	0.709 in
