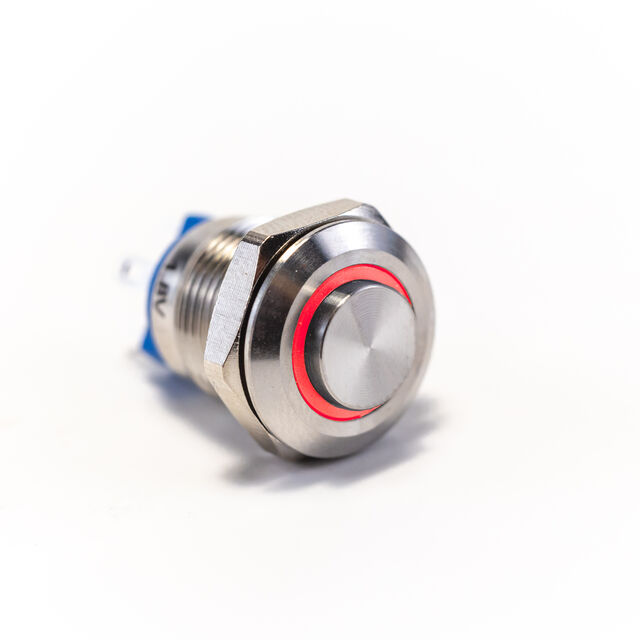

PV0H240SS-3G1

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)

Search across all available documentation for this part.

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)

Technical Specifications

Parameters and characteristics for this part

Specification	PV0H240SS-3G1

Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000000 Cycles
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	1.8 VDC, 2.8 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Off-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - DC	36 VDC

Part	Type	Circuit	Mechanical Life	Panel Cutout Dimensions [diameter]	Termination Style	Termination Style	Termination Style	Actuator Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Color - Actuator/Cap	Illumination Type, Color	Voltage Rating - DC	Electrical Life	Ingress Protection	Switch Function	Mounting Type	Actuator Marking
E-Switch PV0H240SS-3G1	Illuminated Standard	SPST-NO	1000000 Cycles	12 mm	0.11 in	Quick Connect Solder	2.8 mm	Button Round	2 A	55 °C	-20 C	1.8 VDC 2.8 VDC	Silver	Green/Red LED	36 VDC	50000000 Cycles	IP65 - Dust Tight Water Resistant	Off-Mom	Panel Mount Front
E-Switch PV0H240SS-341	Anti-Vandal Illuminated	SPST-NO	1000000 Cycles	12.2 mm		Solder Lug		Button Round	2 A	55 °C	-20 C	2.8 VDC	Silver	Blue LED	48 V	50000 Cycles	IP65 - Dust Tight Water Resistant	Off-Mom	Panel Mount Front	No Marking
E-Switch PV0H240SS-331	Anti-Vandal Illuminated	SPST-NO	1000000 Cycles	12.2 mm		Solder Lug		Button Round	2 A	55 °C	-20 C	2.8 VDC	Silver	Green LED	48 V	50000 Cycles	IP65 - Dust Tight Water Resistant	Off-Mom	Panel Mount Front	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 10.54
TME	N/A	50	$ 18.41

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
