Q-0300Q0005003M

Active

Amphenol Custom Cable

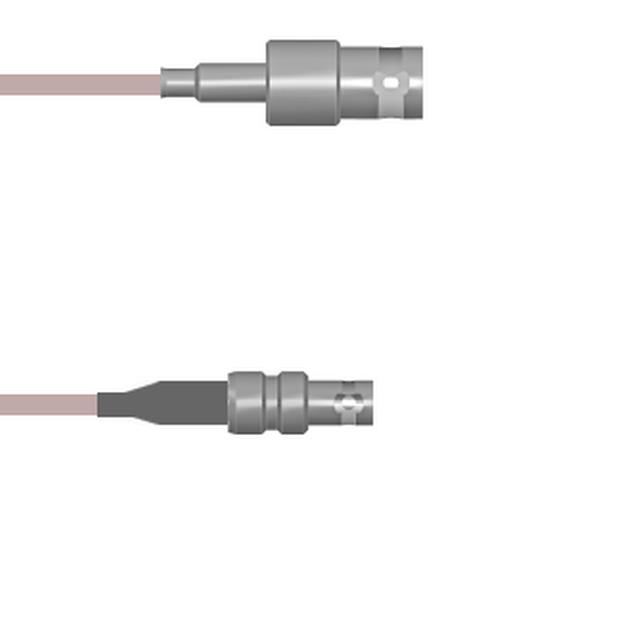

CBL ASSY BNC-HDBNC JCK-JCK 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0300Q0005003M

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC JCK-JCK 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0300Q0005003M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	BNC to HD-BNC

Q-0300Q0 Series

Part	1st Connector	2nd Contact Gender	Style	Cable Type	Frequency - Max [Max]	1st Connector Mounting Type	Color	Length	Length	Length	1st Contact Gender	2nd Connector Mounting Type	Features	Overall Impedance
Amphenol Custom Cable Q-0300Q00031.5M	BNC Jack	Female	BNC to HD-BNC	RG-174	4 GHz	Free Hanging (In-Line)	Black	59.1 in	4.9 ft	1.5 m	Female	Free Hanging (In-Line)	Shielded	50 Ohms
Amphenol Custom Cable Q-0300Q0003009i	BNC Jack	Female	BNC to HD-BNC	RG-174	4 GHz	Free Hanging (In-Line)	Black	9 "		228.6 mm	Female	Free Hanging (In-Line)	Shielded	50 Ohms
Amphenol Custom Cable Q-0300Q0003048i	BNC Jack	Female	BNC to HD-BNC	RG-174	4 GHz	Free Hanging (In-Line)	Black	48 in	4 ft	1200 mm	Female	Free Hanging (In-Line)	Shielded	50 Ohms
Amphenol Custom Cable Q-0300Q00050.5M	BNC Jack	Female	BNC to HD-BNC	RG-316	4 GHz	Free Hanging (In-Line)	Copper	19.69 "		50 cm	Female	Free Hanging (In-Line)	Shielded	50 Ohms
Amphenol Custom Cable Q-0300Q0005003M	BNC Jack	Female	BNC to HD-BNC	RG-316	4 GHz	Free Hanging (In-Line)	Copper	118.1 in	9.8 '	3 m	Female	Free Hanging (In-Line)	Shielded	50 Ohms
Amphenol Custom Cable Q-0300Q0005.75M	BNC Jack	Female	BNC to HD-BNC	RG-316	4 GHz	Free Hanging (In-Line)	Copper	29.53 "		750 mm	Female	Free Hanging (In-Line)	Shielded	50 Ohms
Amphenol Custom Cable Q-0300Q00030.5M	BNC Jack	Female	BNC to HD-BNC	RG-174	4 GHz	Free Hanging (In-Line)	Black	19.69 "		50 cm	Female	Free Hanging (In-Line)	Shielded	50 Ohms
Amphenol Custom Cable Q-0300Q00052.5M	BNC Jack	Female	BNC to HD-BNC	RG-316	4 GHz	Free Hanging (In-Line)	Copper	98.4 in	8.2 '	2.5 m	Female	Free Hanging (In-Line)	Shielded	50 Ohms
Amphenol Custom Cable Q-0300Q00051.5M	BNC Jack	Female	BNC to HD-BNC	RG-316	4 GHz	Free Hanging (In-Line)	Copper	59.1 in	4.9 ft	1.5 m	Female	Free Hanging (In-Line)	Shielded	50 Ohms
Amphenol Custom Cable Q-0300Q0003108i	BNC Jack	Female	BNC to HD-BNC	RG-174	4 GHz	Free Hanging (In-Line)	Black	108 in	9 ft	2.7 m	Female	Free Hanging (In-Line)	Shielded	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 158.37
		25	$ 147.53
		50	$ 136.69
		100	$ 127.40
		250	$ 119.66

Description

General part information

Q-0300Q0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-316 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
