7805R 008500

Active

Belden Inc.

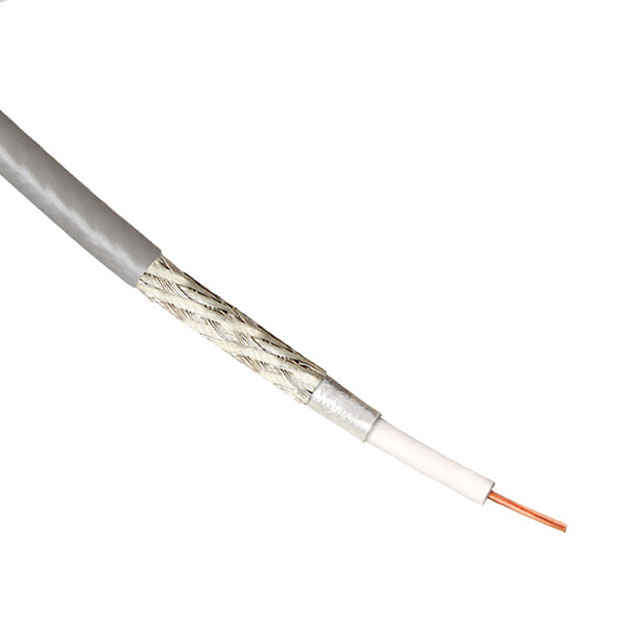

CABLE COAX RG-174 24.5 AWG

Search across all available documentation for this part.

Active

Belden Inc.

CABLE COAX RG-174 24.5 AWG

Technical Specifications

Parameters and characteristics for this part

Specification	7805R 008500

Cable Group	RG-174
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	1.52 mm
Dielectric Diameter [diameter]	0.06 in
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	2.79 mm
Jacket (Insulation) Diameter [diameter]	0.11 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	73.5
Wire Gauge	24 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Jacket (Insulation) Material	Jacket Color	VoP, Velocity of Propagation	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Impedance	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Group	Conductor Material	Wire Gauge	Shield Coverage	Conductor Strand	Cable Type	Shield Type
Belden Inc. 7805R 008500	2.79 mm	0.11 in	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	Gray	73.5	-40 °C	80 C	152.4 m	6000 in	50 Ohms	1.52 mm	0.06 in	RG-174	Copper Bare	24 AWG	90 % 100 %	Solid	Coaxial	Braid Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable 24.5 AWG RG-174 500.0' (152.40m) 50 Ohms
