TS2C4M20C

Active

Switchcraft Inc.

CONN PLUG MALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TS2C4M20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Backshell Material, Plating	Copper Alloy, Nickel
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

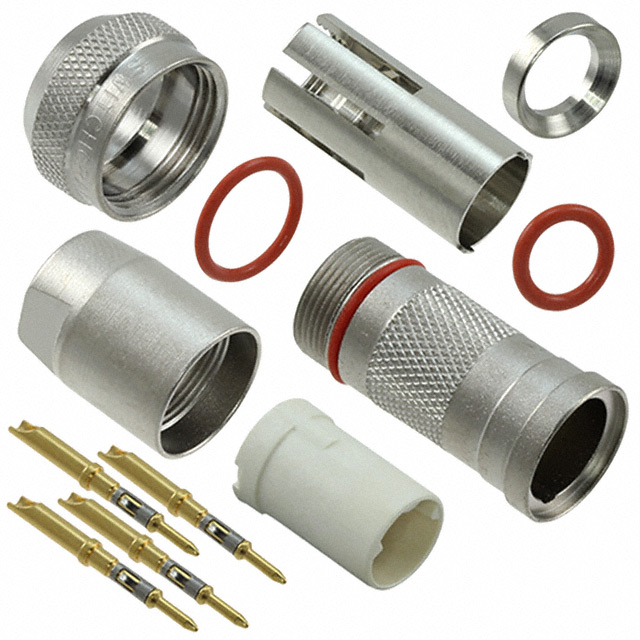

CONN PLUG MALE 4POS GOLD CRIMP

Part	Ingress Protection	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Color	Shell Finish	Mounting Type	Backshell Material, Plating	Applications	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Finish - Mating	Contact Material	Shell Material	Orientation	Insert Material	Features	Voltage Rating	Connector Type	Primary Material	Termination
Switchcraft Inc. TS2C4M20C	IP66, IP67, IP68	5.49 mm	4.57 mm	0.18 in	0.216 in	Silver	Electroless Nickel	Free Hanging (In-Line)	Copper Alloy, Nickel	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Shielded	135 °C	-40 °C	4	Gold	Copper Alloy	Copper Alloy	Keyed	Liquid Crystal Polymer (LCP)	Backshell, Coupling Nut	125 VAC	Male Pins, Plug	Metal	Crimp, Solder Cup

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Crimp or Solder Cup
