Technical Specifications
Parameters and characteristics for this part
| Specification | EVLCMB1-AIO210W |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 17.5 A |
| Main Purpose | Primary Side, AC/DC |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Power - Output | 210 W |
| Supplied Contents | Board(s) |
| Utilized IC / Part | STCMB1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVLCMB1-AIO210W Series

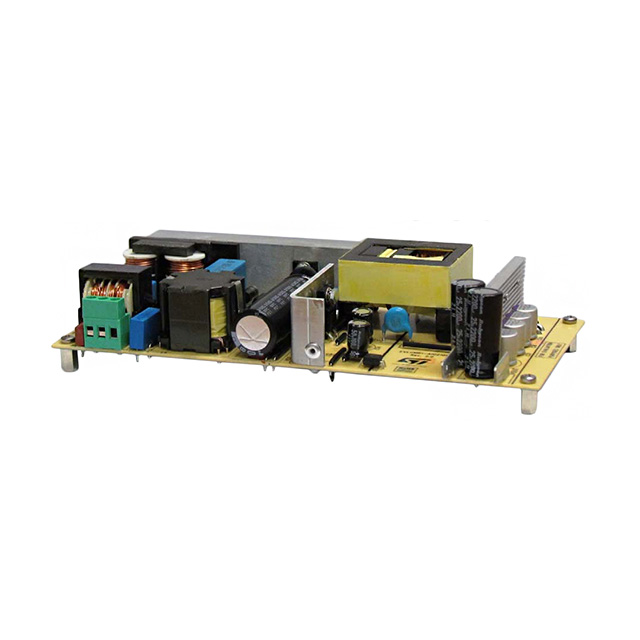

The EVLCMB1-AIO210W demonstration board is a 12 V - 210 W converter, tailored for the typical specification of an AC/DC adapter for all-in-one systems, with a wide input mains range, very low power consumption at light load and good average efficiency.
The architecture is based on a two-stage approach: a front-end transition mode PFC pre-regulator and a downstream LLC resonant half bridge converter; the PFC and LLC controllers are both integrated in the STCMB1 combo IC. At secondary side, synchronous rectification is implemented by means of the SRK2001. The PFC section uses a proprietary a constant-on-time control methodology that does not require a sinusoidal input reference, thereby reducing the system cost and external component count. The LLC section is based on a proprietary time shift control method that improves dynamic behavior and input ripple rejection resulting in a cleaner output voltage.
In the STCMB1 are also embedded a high voltage start up generator, an X-capacitor discharge circuit, the AC brownout/in function and a complete set of protections. These features are fully exploited in the EVLCMB1-AIO210W to make itself a robust and safe SMPS, for both the final user and the supplied system, while keeping a reduced external component count.
