Q-2I0440003009i

Active

Amphenol Custom Cable

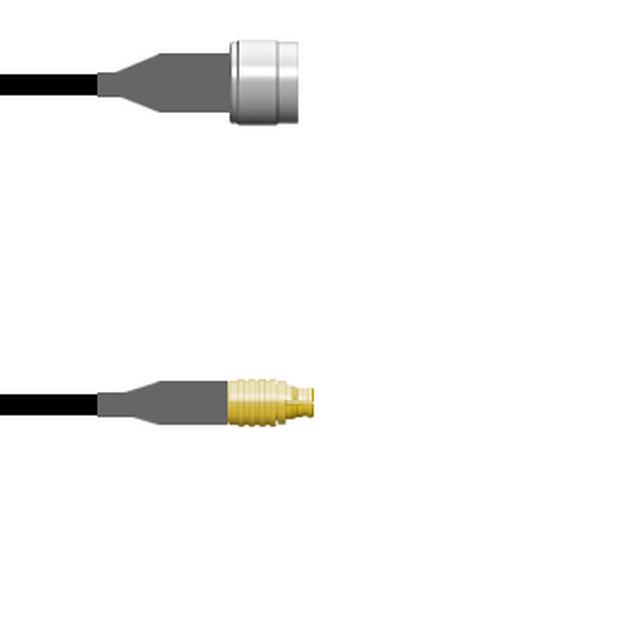

CBL ASSY SMP-NTYPE PLUG-PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I0440003009i

Active

Amphenol Custom Cable

CBL ASSY SMP-NTYPE PLUG-PLUG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I0440003009i

1st Connector	SMP Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	SMP to N-Type

Q-2I0440 Series

Part	Style	Overall Impedance	1st Connector	Frequency - Max [Max]	1st Contact Gender	2nd Connector	Cable Type	Color	1st Connector Mounting Type	Features	2nd Contact Gender	Length	Length	2nd Connector Mounting Type	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-2I0440005003i	SMP to N-Type	50 Ohms	SMP Plug	11 GHz	Male	N-Type Plug	RG-316	Copper	Free Hanging (In-Line)	Shielded	Male	3 in	76.2 mm	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I0440003003i	SMP to N-Type	50 Ohms	SMP Plug	11 GHz	Male	N-Type Plug	RG-174	Black	Free Hanging (In-Line)	Shielded	Male	3 in	76.2 mm	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I0440003024i	SMP to N-Type	50 Ohms	SMP Plug	11 GHz	Male	N-Type Plug	RG-174	Black	Free Hanging (In-Line)	Shielded	Male	24 "	609.6 mm	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I0440005018i	SMP to N-Type	50 Ohms	SMP Plug	11 GHz	Male	N-Type Plug	RG-316	Copper	Free Hanging (In-Line)	Shielded	Male			Free Hanging (In-Line)	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2I0440003009i	SMP to N-Type	50 Ohms	SMP Plug	11 GHz	Male	N-Type Plug	RG-174	Black	Free Hanging (In-Line)	Shielded	Male	9 "	228.6 mm	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I0440003002M	SMP to N-Type	50 Ohms	SMP Plug	11 GHz	Male	N-Type Plug	RG-174	Black	Free Hanging (In-Line)	Shielded	Male	78.7 in	2 m	Free Hanging (In-Line)			6.6 ft
Amphenol Custom Cable Q-2I0440003036i	SMP to N-Type	50 Ohms	SMP Plug	11 GHz	Male	N-Type Plug	RG-174	Black	Free Hanging (In-Line)	Shielded	Male	36 in	91.44 cm	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I04400031.5M	SMP to N-Type	50 Ohms	SMP Plug	11 GHz	Male	N-Type Plug	RG-174	Black	Free Hanging (In-Line)	Shielded	Male	59.1 in	1.5 m	Free Hanging (In-Line)			4.9 ft
Amphenol Custom Cable Q-2I0440005024i	SMP to N-Type	50 Ohms	SMP Plug	11 GHz	Male	N-Type Plug	RG-316	Copper	Free Hanging (In-Line)	Shielded	Male	24 "	609.6 mm	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I0440005036i	SMP to N-Type	50 Ohms	SMP Plug	11 GHz	Male	N-Type Plug	RG-316	Copper	Free Hanging (In-Line)	Shielded	Male	36 in	91.44 cm	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 136.06
		25	$ 133.42
		50	$ 130.77
		100	$ 128.13
		250	$ 125.48

Description

General part information

Q-2I0440 Series

Cable Assembly Coaxial SMP to N-Type RG-174 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
