1-1102259-6
ActiveTE Connectivity AMP Connectors

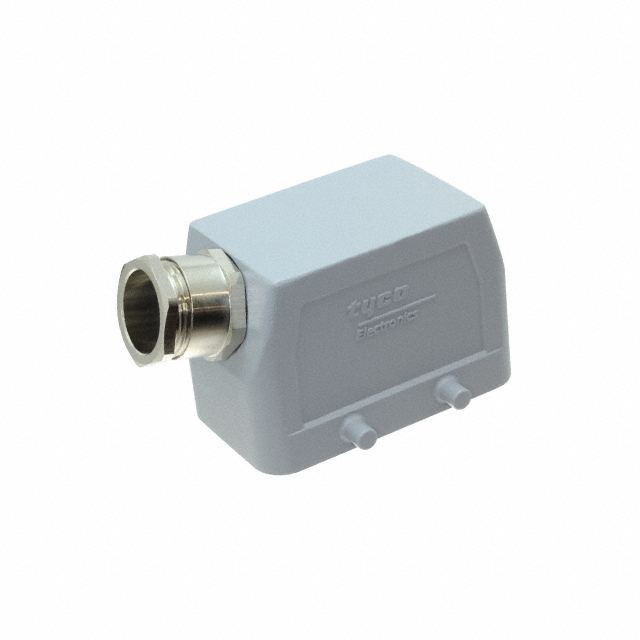

CONN HOOD SIDE ENTRY SZ4 PG16
Deep-Dive with AI
Search across all available documentation for this part.
1-1102259-6
ActiveTE Connectivity AMP Connectors
CONN HOOD SIDE ENTRY SZ4 PG16
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1102259-6 | 1102259 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray, Black |
| Housing Finish | - | Aluminum Oxide |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom, Locking Clip (2) on Hood |
| Size | 4 | 4 |
| Size / Dimension [x] | 2.874 in | 2.874 in |
| Size / Dimension [x] | 73 mm | 73 mm |
| Size / Dimension [y] | 1.693 in | 1.693 in |
| Size / Dimension [y] | 43 mm | 43 mm |
| Size / Dimension [z] | 1.969 in | 1.969 in |
| Size / Dimension [z] | 50 mm | 50 mm |
| Style | Side Entry | Side Entry |
| Thread Size | PG16 | PG16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1102259 Series
CONN HOOD SIDE ENTRY SZ4 PG16
| Part | Connector Type | Housing Color | Thread Size | Housing Material | Size | Style | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Lock Location | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1102259-6 | Hood | Gray | PG16 | Aluminum Alloy, Die Cast | 4 | Side Entry | 2.874 in | 1.969 in | 1.693 in | 50 mm | 73 mm | 43 mm | Locking Clip (2) on Base Bottom | |
TE Connectivity AMP Connectors 2-1102259-1 | Hood | Black | PG16 | Aluminum Alloy, Die Cast | 4 | Side Entry | 2.874 in | 1.969 in | 1.693 in | 50 mm | 73 mm | 43 mm | Locking Clip (2) on Hood | Aluminum Oxide |
Description
General part information
1102259 Series
Hood Connector Side Entry PG16 4
