M74HC273B1R

Active

STMicroelectronics

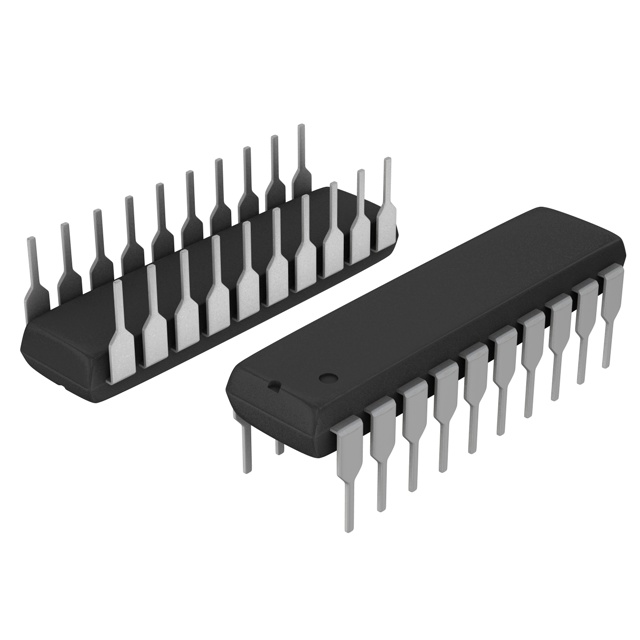

IC FF D-TYPE SINGLE 8BIT 20-DIP

Search across all available documentation for this part.

Active

STMicroelectronics

IC FF D-TYPE SINGLE 8BIT 20-DIP

Technical Specifications

Parameters and characteristics for this part

Specification	M74HC273B1R

Clock Frequency	66 MHz
Current - Output High, Low [custom]	5.2 mA
Current - Output High, Low [custom]	5.2 mA
Current - Quiescent (Iq)	4 çA
Input Capacitance	5 pF
Max Propagation Delay @ V, Max CL	25 ns
Mounting Type	Through Hole
Number of Bits per Element	8
Number of Elements	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Output Type	Non-Inverted
Package / Case	20-DIP
Package / Case	7.62 mm
Package / Case	0.3 in
Supplier Device Package	20-DIP
Trigger Type	Positive Edge
Type	D-Type
Voltage - Supply [Max]	6 V
Voltage - Supply [Min]	2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC FF D-TYPE SINGLE 8BIT 20-DIP

Part	Mounting Type	Input Capacitance	Clock Frequency	Number of Elements	Trigger Type	Package / Case	Package / Case	Package / Case	Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Output Type	Number of Bits per Element	Max Propagation Delay @ V, Max CL	Current - Quiescent (Iq)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package
STMicroelectronics M74HC273B1R	Through Hole	5 pF	66 MHz	1	Positive Edge	20-DIP	7.62 mm	0.3 in	D-Type	5.2 mA	5.2 mA	Non-Inverted	8	25 ns	4 çA	125 °C	-55 °C	2 V	6 V	20-DIP

General part information

Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300", 7.62mm)
