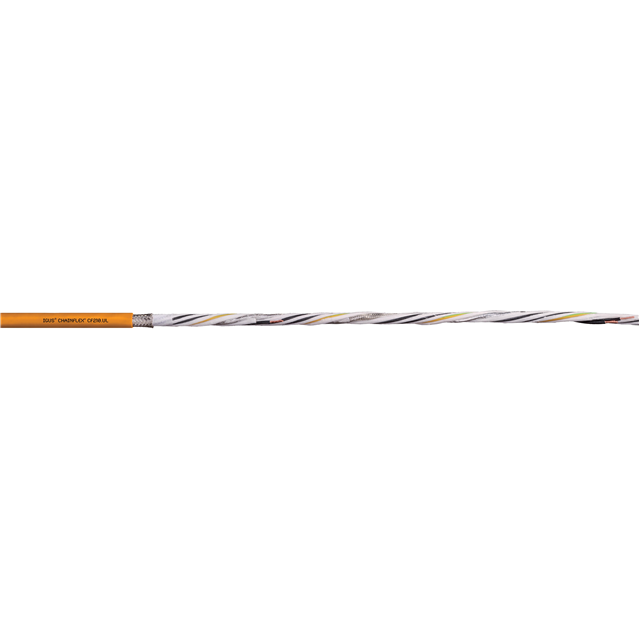

CF210-UL-25-04

Active

Igus

CABLE 4COND 14AWG ORG SHLD FEET

Deep-Dive with AI

Search across all available documentation for this part.

CF210-UL-25-04

Active

Igus

CABLE 4COND 14AWG ORG SHLD FEET

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF210-UL-25-04	CF210 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Polyethylene (XLPE), Irradiated	Polyethylene (XLPE), Irradiated
Conductor Material	Copper, Bare	Copper, Bare
Features	Flame Retardant, Oil Resistant	Flame Retardant, Oil Resistant
Jacket (Insulation) Diameter [diameter]	11.51 mm	10.01 - 16.99 mm
Jacket (Insulation) Diameter [diameter]	0.453 "	0.394 - 0.669 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Orange	Orange
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	4	4 - 8
Ratings	UL Style 2570	UL Style 2570
Shield Coverage	80 %	80 - 90 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Usage	Servo Motor, Industrial	Servo Motor, Industrial
Voltage	1000 V	1000 V
Wire Gauge	13.5 AWG	13.5 - 18 AWG
Wire Gauge	-	12 AWG, 16 AWG, 10 AWG

CF210 Series

CABLE 8COND 12AWG/16AWG FEET

Part	Number of Conductors	Wire Gauge	Conductor Material	Shield Material	Conductor Insulation	Cable Type	Jacket (Insulation) Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Shield Coverage	Ratings	Length	Usage	Voltage	Jacket Color	Wire Gauge
Igus CF210-UL-40-15-02-02	8	12 AWG, 16 AWG	Copper, Bare	Copper, Tinned	Polyethylene (XLPE), Irradiated	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant	0.669 "	16.99 mm	Braid	80 %	UL Style 2570	Enter Number of Feet in Order Quantity	Industrial, Servo Motor	1000 V	Orange
Igus CF210-UL-15-04	4		Copper, Bare	Copper, Tinned	Polyethylene (XLPE), Irradiated	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant	0.394 in	10.01 mm	Braid	80 %	UL Style 2570	Enter Number of Feet in Order Quantity	Industrial, Servo Motor	1000 V	Orange	16 AWG
Igus CF210-UL-40-15-02-01	6	12 AWG, 16 AWG	Copper, Bare	Copper, Tinned	Polyethylene (XLPE), Irradiated	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant	0.591 in	15.01 mm	Braid	90 %	UL Style 2570	Enter Number of Feet in Order Quantity	Industrial, Servo Motor	1000 V	Orange
Igus CF210-UL-25-15-02-02	8	12 AWG, 16 AWG	Copper, Bare	Copper, Tinned	Polyethylene (XLPE), Irradiated	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant	0.63 in	16 mm	Braid	90 %	UL Style 2570	Enter Number of Feet in Order Quantity	Industrial, Servo Motor	1000 V	Orange
Igus CF210-UL-15-07-02-02	8		Copper, Bare	Copper, Tinned	Polyethylene (XLPE), Irradiated	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant	0.531 in	13.49 mm	Braid	90 %	UL Style 2570	Enter Number of Feet in Order Quantity	Industrial, Servo Motor	1000 V	Orange	16 AWG, 18 AWG
Igus CF210-UL-60-15-02-01	6	10 AWG, 16 AWG	Copper, Bare	Copper, Tinned	Polyethylene (XLPE), Irradiated	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant	0.65 in	16.51 mm	Braid	80 %	UL Style 2570	Enter Number of Feet in Order Quantity	Industrial, Servo Motor	1000 V	Orange
Igus CF210-UL-25-04	4		Copper, Bare	Copper, Tinned	Polyethylene (XLPE), Irradiated	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant	0.453 "	11.51 mm	Braid	80 %	UL Style 2570	Enter Number of Feet in Order Quantity	Industrial, Servo Motor	1000 V	Orange	13.5 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.57
		100	$ 4.39
		500	$ 4.22
		1000	$ 3.69

Description

General part information

CF210 Series

4 Conductor Multi-Conductor Cable Orange 14 AWG Braid Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

No documents available
