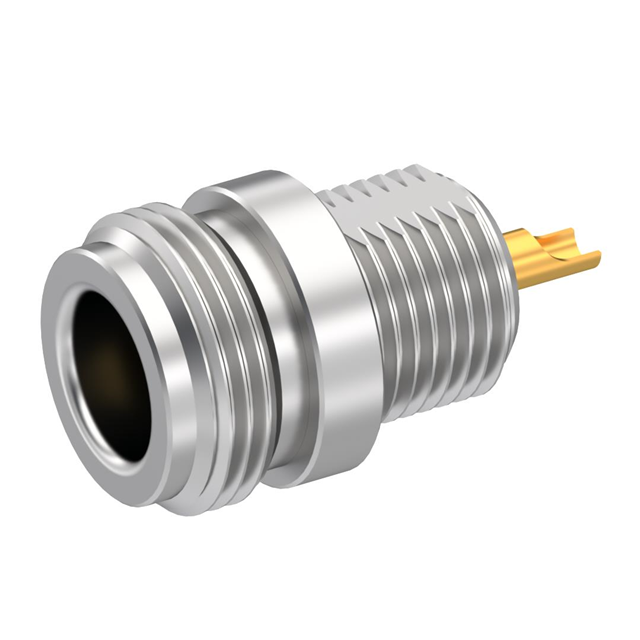

R161532020

Active

Radiall USA, Inc.

N / JACK RECEPTACLE FRONT MOUTIN

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N / JACK RECEPTACLE FRONT MOUTIN

Technical Specifications

Parameters and characteristics for this part

Specification	R161532020

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	1400 V

Part	Insertion Loss	Connector Type	Center Contact Plating	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Number of Ports	Contact Termination	Voltage Rating	Shield Termination	Ingress Protection	Body Finish	Center Contact Material	Connector Style	Mating Cycles	Housing Color	Impedance	Body Material	Mounting Type
Radiall USA, Inc. R161532020	0.15 dB	Female Socket Jack	Gold	11 GHz	165 °C	-55 °C	Polytetrafluoroethylene (PTFE)	1	Solder Cup	1400 V	Solder	IP67 - Dust Tight Waterproof	White Bronze	Beryllium Copper	N Type	500	Silver	50 Ohms	Brass	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 16.49

General part information

N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder Cup
