1579001-3

Obsolete

TE Application Tooling

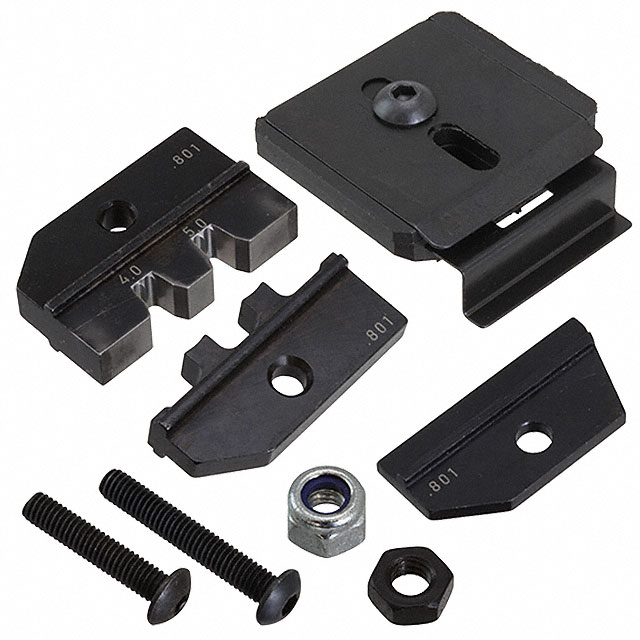

TOOL DIE SET FOR UMNL TERMINALS

Search across all available documentation for this part.

Obsolete

TE Application Tooling

TOOL DIE SET FOR UMNL TERMINALS

Technical Specifications

Parameters and characteristics for this part

Specification	1579001-3

Compatible Tools	539635-1
For Use With/Related Products	Rectangular Contacts, 10-12 AWG
Tool Type	Die Set

Part	For Use With/Related Products [Max]	For Use With/Related Products	For Use With/Related Products [Min]	Compatible Tools	Tool Type	For Use With/Related Products	Specifications
TE Application Tooling 1579001-5	20 AWG	Contacts	18 AWG	539635-1	Die Set
TE Application Tooling 8-1579001-5				539635-1	Die Set
TE Application Tooling 5-1579001-3		Rectangular Contacts		539635-1	Die Set	16 AWG
TE Application Tooling 6-1579001-3		Quick Connects Terminals 14-16 AWG		539635-1	Die Set
TE Application Tooling 1579001-3		Rectangular Contacts 10-12 AWG		539635-1	Die Set
TE Application Tooling 1579001-8		1452575		2-1579005-1	Crimp Head
TE Application Tooling 1-1579001-1		Coaxial RF - Fakra		539635-1	Die Set		0.128 " 0.16 " 0.213 "
TE Application Tooling 5-1579001-7		Rectangular Contacts 18-20 AWG		2-1579005-1	Crimp Head
TE Application Tooling 5-1579001-5		Heavy Duty Contacts		2-1579005-2	Crimp Head	12 AWG
TE Application Tooling 4-1579001-3		1418759 1452654		539635-1	Die Set

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tool Die Set For Rectangular Contacts, 10-12 AWG
