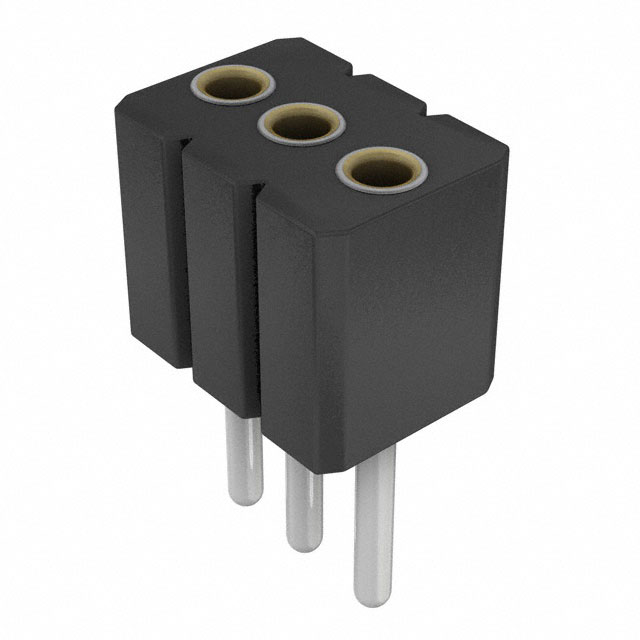

861-83-003-10-001101

Active

PRECI-DIP SA

1MM SINGLE ROW TIN 1A -55℃~+125℃ 3P STRAIGHT 2.5MM PLUGIN,P=1MM FEMALE HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

861-83-003-10-001101

Active

PRECI-DIP SA

1MM SINGLE ROW TIN 1A -55℃~+125℃ 3P STRAIGHT 2.5MM PLUGIN,P=1MM FEMALE HEADERS ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	861-83-003-10-001101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Termination	Solder

861-83 Series

Part	Fastening Type	Number of Rows	Insulation Height [z]	Insulation Height [z]	Contact Shape	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Material	Material Flammability Rating	Termination	Contact Material	Connector Type	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Post	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
PRECI-DIP SA 861-83-031-10-001101	Push-Pull	1	0.098 in	2.5 mm	Circular	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	Beryllium Copper	Socket	Through Hole	0.039 in	1 mm	31	Tin	Black	29.5 Áin	0.75 Ám	All	2.5 mm	0.098 in
PRECI-DIP SA 861-83-046-40-001101	Push-Pull	1			Circular	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	Beryllium Copper	Socket	Surface Mount Right Angle	0.039 in	1 mm	46	Tin	Black	29.5 Áin	0.75 Ám	All			0.087 "	2.2 mm
PRECI-DIP SA 861-83-003-10-001101	Push-Pull	1	0.098 in	2.5 mm	Circular	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	Beryllium Copper	Socket	Through Hole	0.039 in	1 mm		Tin	Black	29.5 Áin	0.75 Ám	All	2.5 mm	0.098 in
PRECI-DIP SA 861-83-041-10-001101	Push-Pull	1	0.098 in	2.5 mm	Circular	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	Beryllium Copper	Socket	Through Hole	0.039 in	1 mm	41	Tin	Black	29.5 Áin	0.75 Ám	All	2.5 mm	0.098 in
PRECI-DIP SA 861-83-010-40-001101	Push-Pull	1			Circular	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	Beryllium Copper	Socket	Surface Mount Right Angle	0.039 in	1 mm	10	Tin	Black	29.5 Áin	0.75 Ám	All			0.087 "	2.2 mm
PRECI-DIP SA 861-83-031-40-001101	Push-Pull	1			Circular	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	Beryllium Copper	Socket	Surface Mount Right Angle	0.039 in	1 mm	31	Tin	Black	29.5 Áin	0.75 Ám	All			0.087 "	2.2 mm
PRECI-DIP SA 861-83-023-10-001101	Push-Pull	1	0.098 in	2.5 mm	Circular	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	Beryllium Copper	Socket	Through Hole	0.039 in	1 mm	23	Tin	Black	29.5 Áin	0.75 Ám	All	2.5 mm	0.098 in
PRECI-DIP SA 861-83-032-40-001101	Push-Pull	1			Circular	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	Beryllium Copper	Socket	Surface Mount Right Angle	0.039 in	1 mm		Tin	Black	29.5 Áin	0.75 Ám	All			0.087 "	2.2 mm
PRECI-DIP SA 861-83-012-10-001101	Push-Pull	1	0.098 in	2.5 mm	Circular	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	Beryllium Copper	Socket	Through Hole	0.039 in	1 mm	12	Tin	Black	29.5 Áin	0.75 Ám	All	2.5 mm	0.098 in
PRECI-DIP SA 861-83-047-10-001101	Push-Pull	1	0.098 in	2.5 mm	Circular	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	Beryllium Copper	Socket	Through Hole	0.039 in	1 mm		Tin	Black	29.5 Áin	0.75 Ám	All	2.5 mm	0.098 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.45
LCSC	Piece	1	$ 1.29
		200	$ 0.52
		500	$ 0.50
		1000	$ 0.49

Description

General part information

861-83 Series

3 Position Socket Connector 0.039" (1.00mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
