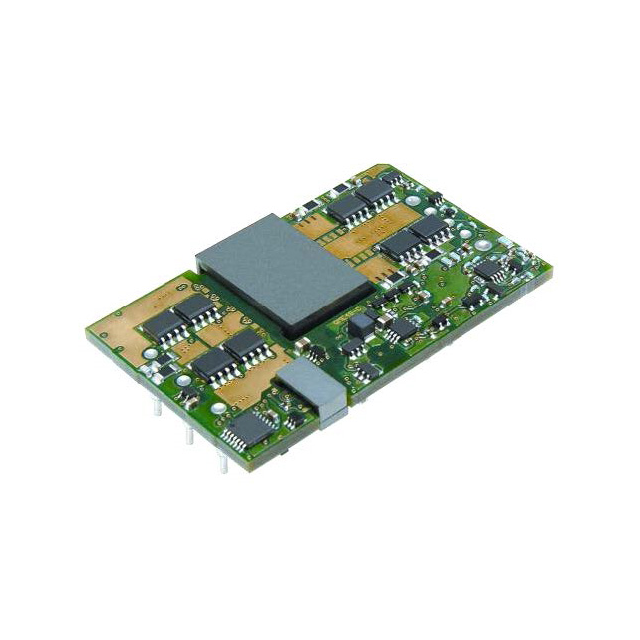

QME48T40033-NGB0G

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 132W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 132W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QME48T40033-NGB0G	QME48T40033 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active High, Enable, Active Low
Current - Output (Max) [Max]	40 A	40 A
Efficiency	91 %	91 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	1/4 Brick, 8-DIP Module	1/4 Brick, 8-DIP Module
Power (Watts)	132 W	132 W
Size / Dimension [x]	2.3 in	2.3 in
Size / Dimension [x]	58.4 mm	58.4 mm
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [z]	0.43 "	0.43 "
Size / Dimension [z]	10.8 mm	10.8 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2000 V	2000 V
Voltage - Output 1	3.3 V	3.3 V

DC DC CONVERTER 3.3V 132W

Part	Number of Outputs	Voltage - Input (Max) [Max]	Control Features	Efficiency	Voltage - Input (Min) [Min]	Package / Case	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Type	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Features	Voltage - Isolation
Bel Power Solutions QME48T40033-PGB0G	1	75 V	Active High, Enable	91 %	36 V	1/4 Brick, 8-DIP Module	3.3 V	2.3 in	58.4 mm	0.43 "	1.45 in	36.8 mm	10.8 mm	132 W	Isolated Module	ITE (Commercial)	Through Hole	85 °C	-40 °C	40 A	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	2000 V
Bel Power Solutions QME48T40033-NGB0G-S1	1	75 V	Active Low, Enable	91 %	36 V	1/4 Brick, 8-DIP Module	3.3 V	2.3 in	58.4 mm	0.43 "	1.45 in	36.8 mm	10.8 mm	132 W	Isolated Module	ITE (Commercial)	Through Hole	85 °C	-40 °C	40 A	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	2000 V
Bel Power Solutions QME48T40033-NGB0G	1	75 V	Active Low, Enable	91 %	36 V	1/4 Brick, 8-DIP Module	3.3 V	2.3 in	58.4 mm	0.43 "	1.45 in	36.8 mm	10.8 mm	132 W	Isolated Module	ITE (Commercial)	Through Hole	85 °C	-40 °C	40 A	OCP, OTP, OVP, Remote On/Off, UVLO	2000 V
Bel Power Solutions QME48T40033-NGA0G-S100	1	75 V	Active Low, Enable	91 %	36 V	1/4 Brick, 8-DIP Module	3.3 V	2.3 in	58.4 mm	0.43 "	1.45 in	36.8 mm	10.8 mm	132 W	Isolated Module	ITE (Commercial)	Through Hole	85 °C	-40 °C	40 A	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	2000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 3.3V 40A 36V - 75V Input
