CYT3BB8CEBQ0AESGS

Active

Infineon Technologies

MCU, 32BIT, 250MHZ, TEQFP-176 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

CYT3BB8CEBQ0AESGS

Active

Infineon Technologies

MCU, 32BIT, 250MHZ, TEQFP-176 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CYT3BB8CEBQ0AESGS

Connectivity	UART/USART, SPI, Ethernet, I2C, CANbus, eMMC/SD, LINbus
Core Processor	ARM® Cortex®-M0+/M7
Core Size [custom]	32-Bit Dual-Core
Data Converters	12 b, 82
EEPROM Size	256 K
Mounting Type	Surface Mount
Number of I/O	148
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External, Internal

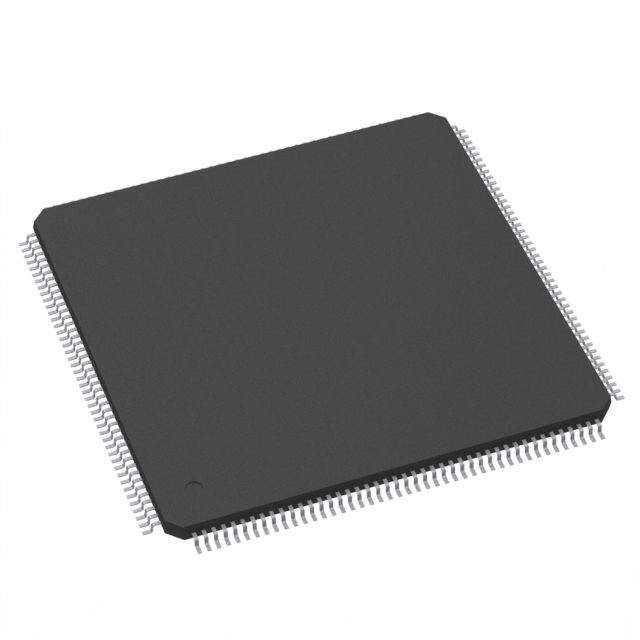

Package / Case	176-LQFP Exposed Pad
Peripherals	WDT, POR, PWM, LVD, I2S, Brown-out Detect/Reset, DMA
Program Memory Size	4.0625 MB
Program Memory Type	FLASH
RAM Size	768 K
Speed	250 MHz
Speed	100 MHz
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V

CYT3BB8 Series

Part	EEPROM Size	Program Memory Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Data Converters	Oscillator Type	Core Size [custom]	Number of I/O	Connectivity	Mounting Type	Package / Case	Core Processor	Speed	Speed	Program Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size	Peripherals	Data Converters [custom]	Data Converters [custom]	Data Converters
Infineon Technologies CYT3BB8CEBR0AESGST	256 K	4.063 MB	2.7 V	5.5 V	12 b 82	External Internal	32-Bit Dual-Core	148	eMMC/SD/SDIO I2C IrDA LINbus Microwire QSPI SmartCard SPI SSP UART/USART USB	Surface Mount	176-LQFP Exposed Pad	ARM® Cortex®-M0+ ARM® Cortex®-M7F	250 MHz	100 MHz	FLASH	105 °C	-40 °C	768 K	Brown-out Detect/Reset DMA I2S LVD POR PWM Temp Sensor WDT
Infineon Technologies CYT3BB8CEBQ0AEEGST	256 K	4.0625 MB	2.7 V	5.5 V	12 b 82	External Internal	32-Bit Dual-Core	148	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	Surface Mount	176-LQFP Exposed Pad	ARM® Cortex®-M0+ ARM® Cortex®-M7	250 MHz	100 MHz	FLASH	125 °C	-40 °C	768 K	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT
Infineon Technologies CYT3BB8CEBQ0AESGST	256 K	4.0625 MB	2.7 V	5.5 V	12 b 82	External Internal	32-Bit Dual-Core	148	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	Surface Mount	176-LQFP Exposed Pad	ARM® Cortex®-M0+ ARM® Cortex®-M7	250 MHz	100 MHz	FLASH	105 °C	-40 °C	768 K	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT
Infineon Technologies CYT3BB8CEBQ1AESGS	256 K	4.0625 MB	2.7 V	5.5 V		External Internal	32-Bit Dual-Core	148	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	Surface Mount	176-LQFP Exposed Pad	ARM® Cortex®-M0+ ARM® Cortex®-M7F	250 MHz	100 MHz	FLASH	105 °C	-40 °C	768 K	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	64	12	SAR
Infineon Technologies CYT3BB8CEBQ0AEEGS	256 K	4.0625 MB	2.7 V	5.5 V	12 b 82	External Internal	32-Bit Dual-Core	148	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	Surface Mount	176-LQFP Exposed Pad	ARM® Cortex®-M0+ ARM® Cortex®-M7	250 MHz	100 MHz	FLASH	125 °C	-40 °C	768 K	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT
Infineon Technologies CYT3BB8CEBQ0AESGS	256 K	4.0625 MB	2.7 V	5.5 V	12 b 82	External Internal	32-Bit Dual-Core	148	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	Surface Mount	176-LQFP Exposed Pad	ARM® Cortex®-M0+/M7	250 MHz	100 MHz	FLASH	105 °C	-40 °C	768 K	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT
Infineon Technologies CYT3BB8CEBQ1AEEGST	256 K	4.0625 MB	2.7 V	5.5 V		External Internal	32-Bit Dual-Core	148	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	Surface Mount	176-LQFP Exposed Pad	ARM® Cortex®-M0+ ARM® Cortex®-M7F	250 MHz	100 MHz	FLASH	125 °C	-40 °C	768 K	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	64	12	SAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 25.43
		10	$ 23.45
		40	$ 22.40
		80	$ 20.03
		240	$ 19.11
		440	$ 18.18
Newark	Each	1	$ 19.40

Description

General part information

CYT3BB8 Series

ARM® Cortex®-M0+/M7 - Microcontroller IC 32-Bit Dual-Core 100MHz, 250MHz 4.0625MB (4.0625M x 8) FLASH 176-TEQFP (24x24)
