8791 0601000

Active

Belden Inc.

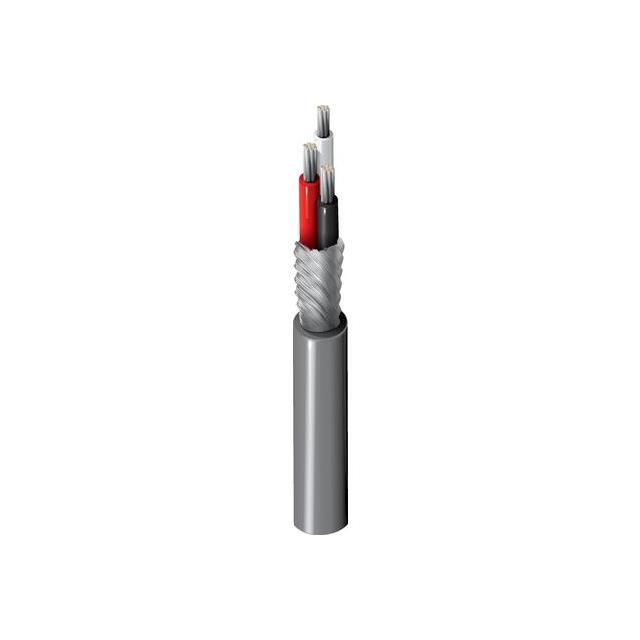

CABLE 3COND 18AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	8791 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	6.6 mm
Jacket (Insulation) Diameter [diameter]	0.26 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.028 in
Jacket (Insulation) Thickness	0.711 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	80 %
Shield Material	Copper, Tinned
Shield Type	Spiral
Usage	Audio, Instrumentation, Control
Wire Gauge	18 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Wire Gauge	Conductor Insulation	Shield Material	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Jacket (Insulation) Material	Conductor Material	Usage	Shield Type
Belden Inc. 8791 0601000	-20 C	80 C	1000 ft	304.8 m	18 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	6.6 mm	0.26 in	80 %	0.028 in	0.711 mm	Chrome	26 AWG	7	3	Poly-Vinyl Chloride (PVC)	Copper Tinned	Audio Control Instrumentation	Spiral

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.45

General part information

3 Conductor Multi-Conductor Cable Chrome 18 AWG Spiral 1000.0' (304.8m)
