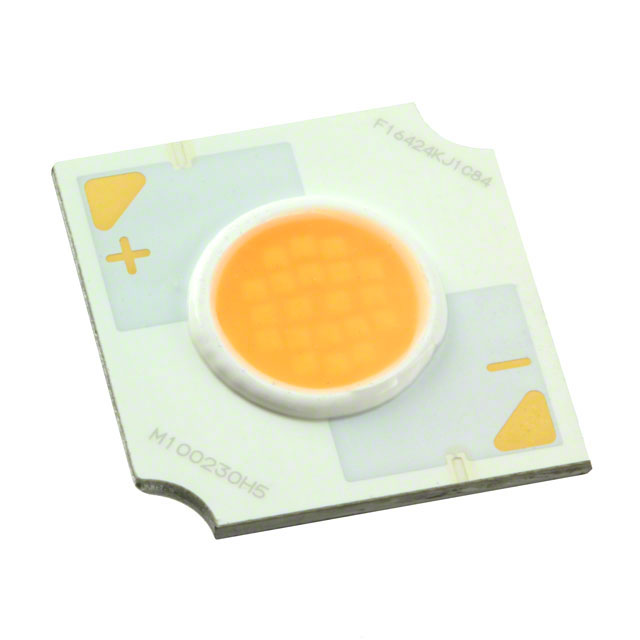

CLU701-1002C4-503M2K1

Active

Citizen

LED COB CLU701 COOL WH SQ 5000K

Search across all available documentation for this part.

Active

Citizen

LED COB CLU701 COOL WH SQ 5000K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CLU701 White, Cool Square

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	CLU701-1002C4-503M2K1	CLU701 Series

CCT (K)	5000 K	2700 - 5000 K
Color	Cool, White	White, Warm, Neutral, Cool
Configuration	Square	Square
CRI (Color Rendering Index)	80	80 - 90
Current - Max [Max]	460 mA	460 - 920 mA
Current - Test	350 mA	350 - 525 mA
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	6 mm Dia	6 mm Dia
Lumens/Watt @ Current - Test	119 lm/W	88 - 127 lm/W
Luminous Flux @ Current/Temperature	1305 lm	480 - 1305 lm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	31.3 V	9.4 - 31.3 V

LED COB CLU701 WM WHT SQ 3500K

Part	Type	Configuration	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Temperature - Test	Current - Max [Max]	Lens Type	CCT (K)	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Color	Luminous Flux @ Current/Temperature	Current - Test
Citizen CLU701-0304C4-353M2K1	Chip On Board (COB)	Square	6 mm Dia	9.4 V	85 °C	920 mA	Flat	3500 K	125 lm/W	80	Warm, White	824 lm
Citizen CLU701-0303C4-403M2K1	Chip On Board (COB)	Square	6 mm Dia	9.4 V	85 °C	690 mA	Flat	4000 K	127 lm/W	80	Neutral, White	625 lm	525 mA
Citizen CLU701-0303C4-403H5K2	Chip On Board (COB)	Square	6 mm Dia	9.4 V	85 °C	690 mA	Flat	4000 K	105 lm/W	90	Neutral, White	516 lm	525 mA
Citizen CLU701-1002C4-273H5K2	Chip On Board (COB)	Square	6 mm Dia	31.3 V	85 °C	460 mA	Flat	2700 K	88 lm/W	90	Warm, White	962 lm	350 mA
Citizen CLU701-1002C4-303M2K1	Chip On Board (COB)	Square	6 mm Dia	31.3 V	85 °C	460 mA	Flat		112 lm/W	80	Warm, White	1224 lm	350 mA
Citizen CLU701-0304C4-273H5K2	Chip On Board (COB)	Square	6 mm Dia	9.4 V	85 °C	920 mA	Flat	2700 K	97 lm/W	90	Warm, White	640 lm
Citizen CLU701-1002C4-503M2K1	Chip On Board (COB)	Square	6 mm Dia	31.3 V	85 °C	460 mA	Flat	5000 K	119 lm/W	80	Cool, White	1305 lm	350 mA
Citizen CLU701-0304C4-273M2K1	Chip On Board (COB)	Square	6 mm Dia	9.4 V	85 °C	920 mA	Flat	2700 K	118 lm/W	80	Warm, White	775 lm
Citizen CLU701-0303C4-273H5K2	Chip On Board (COB)	Square	6 mm Dia	9.4 V	85 °C	690 mA	Flat	2700 K	97 lm/W	90	Warm, White	480 lm	525 mA
Citizen CLU701-0303C4-353H5K2	Chip On Board (COB)	Square	6 mm Dia	9.4 V	85 °C	690 mA	Flat	3500 K	104 lm/W	90	Warm, White	511 lm	525 mA
