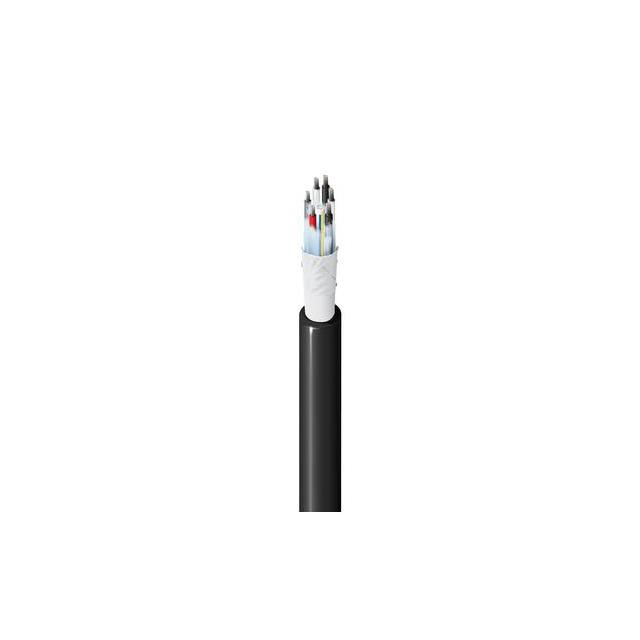

7804P 0101000

Active

Belden Inc.

COMPOSITE CAMERA CABLE PVC

Search across all available documentation for this part.

Active

Belden Inc.

COMPOSITE CAMERA CABLE PVC

Technical Specifications

Parameters and characteristics for this part

Specification	7804P 0101000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19, 7
Conductor Strand [custom]	32
Jacket (Insulation) Diameter [diameter]	6.58 mm
Jacket (Insulation) Diameter [diameter]	0.259 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	6, 2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style CMP
Shield Coverage	80 %
Shield Material	Copper, Tinned
Shield Type	Braid
Wire Gauge	20 AWG, 24 AWG

Part	Number of Conductors	Jacket (Insulation) Material	Length	Length	Shield Coverage	Ratings	Conductor Insulation	Shield Type	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Material	Length [x]	Length [x]
Belden Inc. 7804P 0101000	2 6	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	80 %	UL Style CMP	Fluorinated Ethylene-Propylene (FEP)	Braid	Copper Tinned	7 19	32	6.58 mm	0.259 "	Multi-Conductor	20 AWG 24 AWG	-20 C	70 °C	Black	Copper Tinned
Belden Inc. 7804P 010500	2 6	Poly-Vinyl Chloride (PVC)			80 %	UL Style CMP	Fluorinated Ethylene-Propylene (FEP)	Braid	Copper Tinned	7 19	32	6.58 mm	0.259 "	Multi-Conductor	20 AWG 24 AWG	-20 C	70 °C	Black	Copper Tinned	500 '	152.4 m
Belden Inc. 7804P 0103280	2 6	Poly-Vinyl Chloride (PVC)	3281 ft	1000 m	80 %	UL Style CMP	Fluorinated Ethylene-Propylene (FEP)	Braid	Copper Tinned	7 19	32	6.58 mm	0.259 "	Multi-Conductor	20 AWG 24 AWG	-20 C	70 °C	Black	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.51

General part information

8 (6+2 Fiber) Conductor Multi-Conductor Cable Black 20 AWG, 24 AWG Braid 1000.0' (304.8m)
