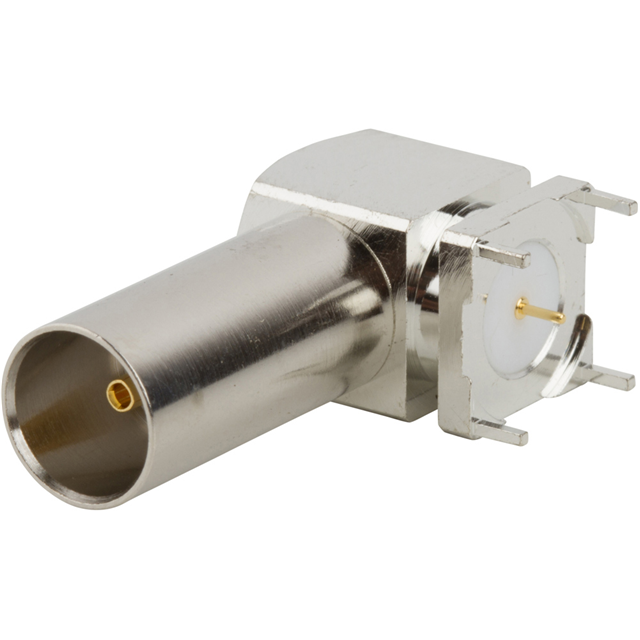

112659-75-10

Active

Amphenol RF

BNC RIGHT ANGLE PCB JACK, THROUG

Search across all available documentation for this part.

Active

Amphenol RF

BNC RIGHT ANGLE PCB JACK, THROUG

Technical Specifications

Parameters and characteristics for this part

Specification	112659-75-10

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Body Material	Mating Cycles	Body Finish	Connector Type	Housing Color	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Center Contact Plating	Center Contact Material	Impedance	Contact Termination	Number of Ports	Mounting Type	Frequency - Max [Max]	Fastening Type	Dielectric Material	Voltage Rating	Insertion Loss
Amphenol RF 112659-75-10	Brass	500	Nickel	Female Socket Jack	Silver	Solder	-65 ░C	165 °C	BNC	Gold	Phosphor Bronze	75 Ohms	Solder	1	Panel Mount Right Angle Through Hole	4 GHz	Push-Pull	Polytetrafluoroethylene (PTFE)
Amphenol RF 112659-75	Brass	500	Nickel	Female Socket Jack	Silver	Solder	-65 ░C	165 °C	BNC	Gold	Phosphor Bronze	75 Ohms	Solder	1	Through Hole Right Angle	4 GHz	Bayonet Lock	Polytetrafluoroethylene (PTFE)	500 V	0.2 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.55

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
