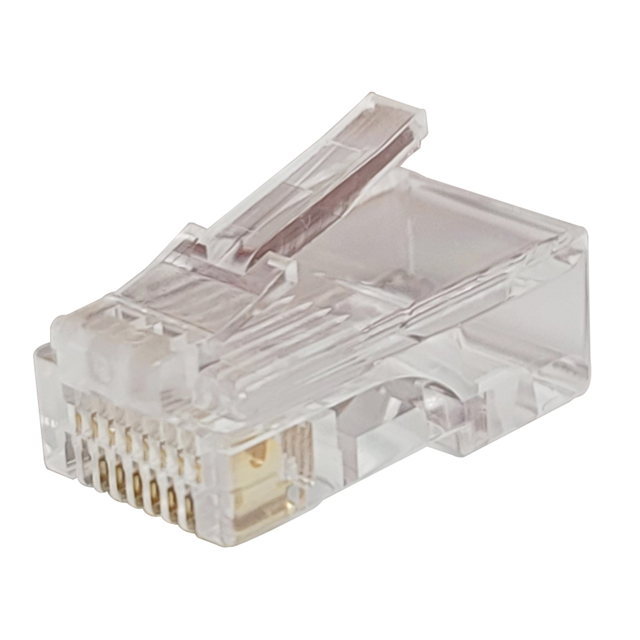

MP88X-1000

Active

Kycon, Inc.

MOD PLUG 8P8C-STRANDED/FLAT ROHS

Search across all available documentation for this part.

Active

Kycon, Inc.

MOD PLUG 8P8C-STRANDED/FLAT ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	MP88X-1000

Cable Type	Flat Oval Cable, Stranded Wires
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Housing Material	Polycarbonate (PC)
Length	0.886 in
Length	22.5 mm
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Shielding	Unshielded
Termination	IDC

MOD PLUG 8P8C-STRANDED/FLAT ROHS

Part	Contact Finish Thickness	Connector Type	Housing Material	Cable Type	Number of Positions/Contacts	Contact Finish	Current Rating (Amps)	Termination	Contact Material	Length	Length	Shielding
Kycon, Inc. MP88X-1000	Flash	Plug	Polycarbonate (PC)	Flat Oval Cable, Stranded Wires	8p8c (RJ45, Ethernet)	Gold	1.5 A	IDC	Copper Alloy	0.886 in	22.5 mm	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded IDC
