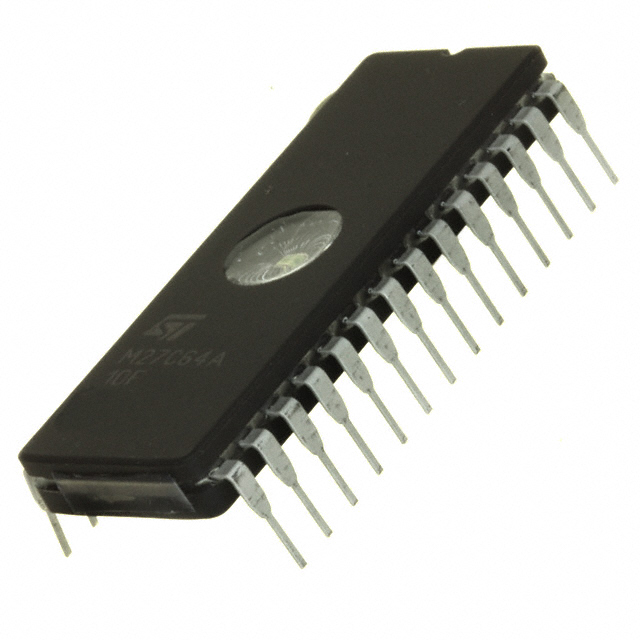

M27C64A-15F1
ObsoleteSTMicroelectronics
IC EPROM 64KBIT PARALLEL 28CDIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M27C64A-15F1
ObsoleteSTMicroelectronics
IC EPROM 64KBIT PARALLEL 28CDIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M27C64A-15F1 |
|---|---|
| Access Time | 150 ns |
| Memory Format | EPROM |
| Memory Interface | Parallel |
| Memory Organization | 8 K |
| Memory Size | 64 Kbit |
| Memory Type | Non-Volatile |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 28-CDIP Window |
| Package / Case | 0.6 in |
| Package / Case | 15.24 mm |
| Supplier Device Package | 28-CDIP Frit Seal with Window |
| Technology | EPROM - UV |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M27C64 Series
EPROM - UV Memory IC 64Kbit Parallel 150 ns 28-CDIP Frit Seal with Window
