GSF1.0221.31

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14

Technical Specifications

Parameters and characteristics for this part

Specification	GSF1.0221.31

Accomodates a Fuse	False
Approval Agency	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT RCPT IEC320-C14

Part	Connector Type	Filter Type	Material Flammability Rating	Connector Style	Approval Agency	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Ingress Protection	Accomodates a Fuse
SCHURTER Inc. GSF1.0221.31	Male Blades, Receptacle	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	CCC, CSA, ENEC, UL	250 VAC	10 A	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

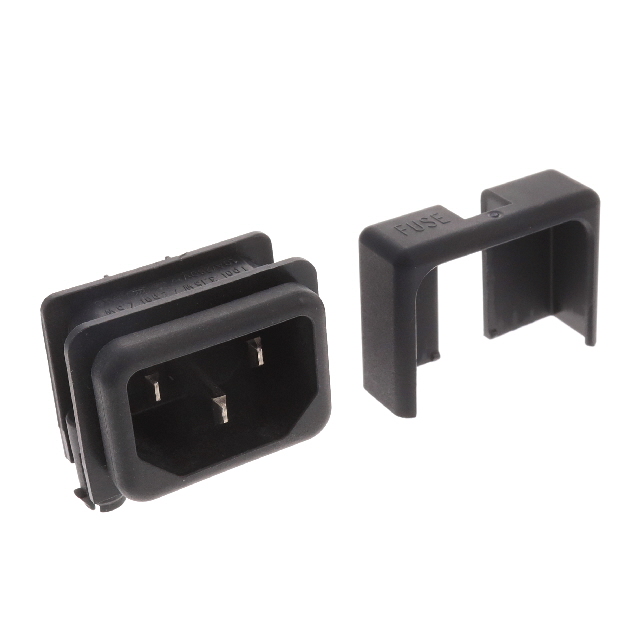

Power Entry Connector Receptacle, Male Blades IEC 320-C14

Technical documentation and resources
