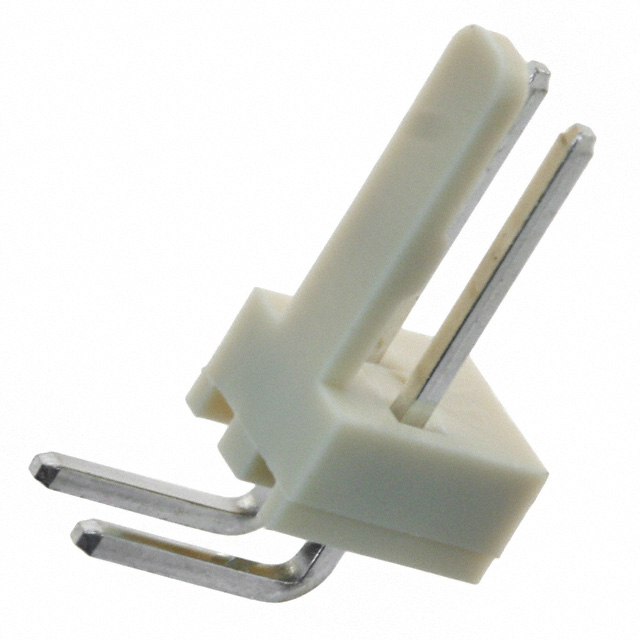

SWR25X-NRTC-S02-RB-BA
ActiveSullins Connector Solutions
CONN HEADER R/A 2POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SWR25X-NRTC-S02-RB-BA
ActiveSullins Connector Solutions
CONN HEADER R/A 2POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SWR25X-NRTC-S02-RB-BA |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 7.7 mm |
| Contact Length - Mating | 0.303 in |
| Contact Length - Post [x] | 0.134 in |
| Contact Length - Post [x] | 3.4 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 5 A |
| Fastening Type | Friction Lock |
| Insulation Color | Beige |
| Insulation Height | 5.8 mm |
| Insulation Height | 0.228 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Shrouded - 1 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
SWR25X Series
| Part | Connector Type | Termination | Contact Length - Mating | Contact Length - Mating | Contact Type | Insulation Height | Insulation Height | Insulation Material | Fastening Type | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Contact Material | Number of Positions Loaded | Mounting Type | Contact Finish - Post | Number of Positions | Pitch - Mating | Pitch - Mating | Voltage Rating | Insulation Color | Number of Rows | Style | Shrouding | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post [x] | Overall Contact Length | Overall Contact Length | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | Header | Solder | 7.7 mm | 0.303 in | Male Pin | 5.8 mm | 0.228 in | Polyamide (PA66) Nylon 6/6 | Friction Lock | UL94 V-0 | -25 °C | 85 °C | Square | Brass | All | Through Hole Right Angle | Tin | 8 | 0.1 in | 2.54 mm | 250 VDC | Beige | 1 | Board to Cable/Wire | Shrouded - 1 Wall | 5 A | 0.134 in | 3.4 mm | ||||
Sullins Connector Solutions | Header | Solder | 7.7 mm | 0.303 in | Male Pin | 5.8 mm | 0.228 in | Polyamide (PA66) Nylon 6/6 | Friction Lock | UL94 V-0 | -25 °C | 85 °C | Square | Brass | All | Through Hole Right Angle | Tin | 2 | 0.1 in | 2.54 mm | 250 VDC | Beige | 1 | Board to Cable/Wire | Shrouded - 1 Wall | 5 A | 0.134 in | 3.4 mm | ||||
Sullins Connector Solutions | Header | Solder | 7.7 mm | 0.303 in | Male Pin | 5.8 mm | 0.228 in | Polyamide (PA66) Nylon 6/6 | Friction Lock | UL94 V-0 | -25 °C | 85 °C | Square | Brass | All | Through Hole Right Angle | Tin | 10 | 0.1 in | 2.54 mm | 250 VDC | Beige | 1 | Board to Cable/Wire | Shrouded - 1 Wall | 5 A | 0.134 in | 3.4 mm | ||||
Sullins Connector Solutions | Header | Solder | 7.49 mm | 0.295 in | Male Pin | Polyamide (PA66) Nylon 6/6 | Friction Lock | UL94 V-0 | -25 °C | 85 °C | Square | Brass | All | Through Hole | Tin | 4 | 0.1 in | 2.54 mm | 250 VDC | Beige | 1 | Board to Cable/Wire | Shrouded - 1 Wall | 4 A | 0.134 in | 3.4 mm | 14.2 mm | 0.559 in | 0.449 in | 11.4 mm | ||
Sullins Connector Solutions | Header | Solder | 7.49 mm | 0.295 in | Male Pin | Polyamide (PA66) Nylon 6/6 | Friction Lock | UL94 V-0 | -25 °C | 85 °C | Square | Brass | All | Through Hole | Tin | 6 | 0.1 in | 2.54 mm | 250 VDC | Beige | 1 | Board to Cable/Wire | Shrouded - 1 Wall | 4 A | 0.134 in | 3.4 mm | 14.2 mm | 0.559 in | 0.449 in | 11.4 mm | ||
Sullins Connector Solutions | Header | Solder | 7.6 mm | 0.299 in | Male Pin | 5.8 mm | 0.228 in | Polyamide (PA66) Nylon 6/6 | Friction Lock | UL94 V-0 | -25 °C | 85 °C | Square | Brass | All | Through Hole Right Angle | Tin | 6 | 0.1 in | 2.54 mm | 250 VDC | Beige | 1 | Board to Cable/Wire | Shrouded - 1 Wall | 4 A | 0.134 in | 3.4 mm | ||||
Sullins Connector Solutions | Header | Solder | 7.6 mm | 0.299 in | Male Pin | Polyamide (PA66) Nylon 6/6 | Friction Lock | UL94 V-0 | -25 °C | 85 °C | Square | Brass | All | Through Hole | Tin | 9 | 0.1 in | 2.54 mm | 250 VDC | Beige | 1 | Board to Cable/Wire | Shrouded - 1 Wall | 3 A | 0.134 in | 3.4 mm | 14.2 mm | 0.559 in | 0.449 in | 11.4 mm | ||
Sullins Connector Solutions | Header | Solder | 7.6 mm | 0.299 in | Male Pin | Polyamide (PA66) Nylon 6/6 | Friction Lock | UL94 V-0 | -25 °C | 85 °C | Square | Brass | All | Through Hole | Tin | 7 | 0.1 in | 2.54 mm | 250 VDC | Beige | 1 | Board to Cable/Wire | Shrouded - 1 Wall | 3 A | 0.134 in | 3.4 mm | 14.2 mm | 0.559 in | 0.449 in | 11.4 mm | ||
Sullins Connector Solutions | Header | Solder | 7.6 mm | 0.299 in | Male Pin | Polyamide (PA66) Nylon 6/6 | Friction Lock | UL94 V-0 | -25 °C | 85 °C | Square | Brass | All | Through Hole | Tin | 4 | 0.1 in | 2.54 mm | 250 VDC | White | 1 | Board to Cable/Wire | Shrouded - 1 Wall | 3 A | 0.134 in | 3.4 mm | 14.2 mm | 0.559 in | 0.449 in | 11.4 mm | ||
Sullins Connector Solutions | Header | Solder | 7.7 mm | 0.303 in | Male Pin | 5.8 mm | 0.228 in | Polyamide (PA66) Nylon 6/6 | Friction Lock | UL94 V-0 | -25 °C | 85 °C | Square | Brass | All | Through Hole Right Angle | Tin | 7 | 0.1 in | 2.54 mm | 250 VDC | Beige | 1 | Board to Cable/Wire | Shrouded - 1 Wall | 5 A | 0.134 in | 3.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.15 | |
| 10 | $ 0.11 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| 5000 | $ 0.05 | |||
| 10000 | $ 0.05 | |||
Description
General part information
SWR25X Series
Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm)
