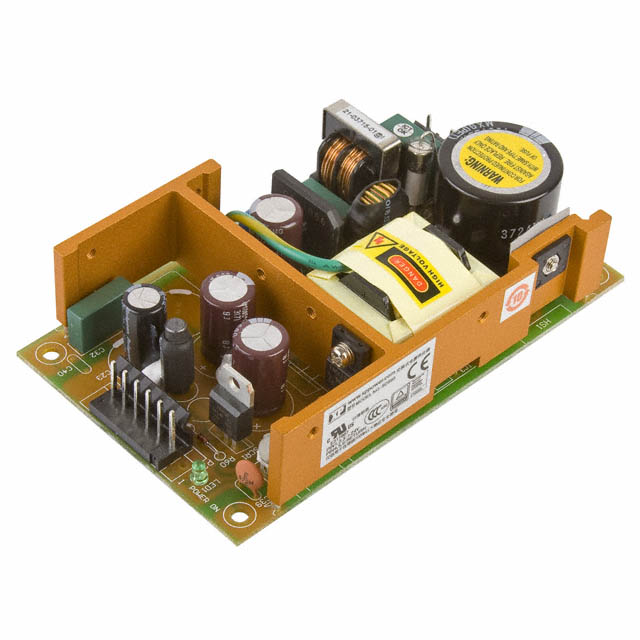

SDS60UQ02

Active

XP Power

AC/DC CNVRTR 5V +/-12V -5V 60W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SDS Series TUV Certificate +2

SDS60UQ02

Active

XP Power

AC/DC CNVRTR 5V +/-12V -5V 60W

Deep-Dive with AI

DocumentsDatasheet SDS Series TUV Certificate +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 110.57

Description

General part information

SDS60 Series

Open Frame AC DC Converters 4 Output 5V 12V -12V -5V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

Datasheet

SDS Series TUV Certificate

SDS Series CB Report

SDS60 Series UK Certificate

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SDS60UQ02	SDS60 Series

Accessory Type	-	Wire Harness, Cover
Applications	ITE (Commercial)	ITE (Commercial)
Current - Output 1	6 A	1.3 - 6 A
Current - Output 2	3 A	2 - 3 A
Current - Output 3	800 mA	800 mA
Current - Output 4	800 mA	800 mA
Efficiency	80 %	80 %
Features	Universal Input, Adjustable Output, DC Input Capable	Universal Input, Adjustable Output, DC Input Capable
For Use With/Related Products	-	SDS Series Power Supplies
Minimum Load Required	True	True, False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	4	1 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [x]	5 in	5 in
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	1.2 "	1.2 "
Size / Dimension [z]	30.5 mm	30.5 mm
Standard Number	62368-1	62368-1
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	5 V	5 - 48 V
Voltage - Output 2	12 V	12 - 24 V
Voltage - Output 3	-12 V	-15 - 12 V
Voltage - Output 4	-5 V	-5 - 24 V

SDS60 Series

AC/DC OPEN FRAME POWER SUPPLY, 1U APPLICATIONS, FIXED, 63W, 5V, 6A, 15V, 3A, -15V, 800MA, -5V, 800MA ROHS COMPLIANT: YES

Part	Voltage - Output 1	Current - Output 1	Standard Number	Features	Applications	Voltage - Output 4	Voltage - Isolation	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 3	Current - Output 3	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 4	Efficiency	Mounting Type	Number of Outputs	Current - Output 2	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 2	For Use With/Related Products	Accessory Type
XP Power SDS60UQ05	5 V	6 A	62368-1	Adjustable Output, DC Input Capable, Universal Input	ITE (Commercial)	-5 V	3000 V	Open Frame	127 mm	3 "	1.2 "	30.5 mm	5 in	76.2 mm	-15 V	800 mA	70 °C	0 °C	800 mA	80 %	Chassis Mount	4	3 A	90 VAC	264 VAC	15 V
XP Power SDS60US48	48 V	1.3 A	62368-1	Adjustable Output, DC Input Capable, Universal Input	ITE (Commercial)		3000 V	Open Frame	127 mm	3 "	1.2 "	30.5 mm	5 in	76.2 mm			70 °C	0 °C		80 %	Chassis Mount	1		90 VAC	264 VAC
XP Power SDS60UT05	5 V	6 A	62368-1	Adjustable Output, DC Input Capable, Universal Input	ITE (Commercial)		3000 V	Open Frame	127 mm	3 "	1.2 "	30.5 mm	5 in	76.2 mm	-12 V	800 mA	70 °C	0 °C		80 %	Chassis Mount	3	3 A	90 VAC	264 VAC	12 V
XP Power SDS60UT10	5 V	6 A	62368-1	Adjustable Output, DC Input Capable, Universal Input	ITE (Commercial)		3000 V	Open Frame	127 mm	3 "	1.2 "	30.5 mm	5 in	76.2 mm	12 V	800 mA	70 °C	0 °C		80 %	Chassis Mount	3	2 A	90 VAC	264 VAC	24 V
XP Power SDS60UQ02	5 V	6 A	62368-1	Adjustable Output, DC Input Capable, Universal Input	ITE (Commercial)	-5 V	3000 V	Open Frame	127 mm	3 "	1.2 "	30.5 mm	5 in	76.2 mm	-12 V	800 mA	70 °C	0 °C	800 mA	80 %	Chassis Mount	4	3 A	90 VAC	264 VAC	12 V
XP Power SDS60UT07	5 V	6 A	62368-1	Adjustable Output, DC Input Capable, Universal Input	ITE (Commercial)		3000 V	Open Frame	127 mm	3 "	1.2 "	30.5 mm	5 in	76.2 mm	-15 V	800 mA	70 °C	0 °C		80 %	Chassis Mount	3	3 A	90 VAC	264 VAC	15 V
XP Power SDS60US24	24 V	2.6 A	62368-1	Adjustable Output, DC Input Capable, Universal Input	ITE (Commercial)		3000 V	Open Frame	127 mm	3 "	1.2 "	30.5 mm	5 in	76.2 mm			70 °C	0 °C		80 %	Chassis Mount	1		90 VAC	264 VAC
XP Power SDS60US36	36 V	1.7 A	62368-1	Adjustable Output, DC Input Capable, Universal Input	ITE (Commercial)		3000 V	Open Frame	127 mm	3 "	1.2 "	30.5 mm	5 in	76.2 mm			70 °C	0 °C		80 %	Chassis Mount	1		90 VAC	264 VAC
XP Power SDS60Q LOOM KIT																											SDS Series Power Supplies	Wire Harness
XP Power SDS60 COVER KIT																											SDS Series Power Supplies	Cover
