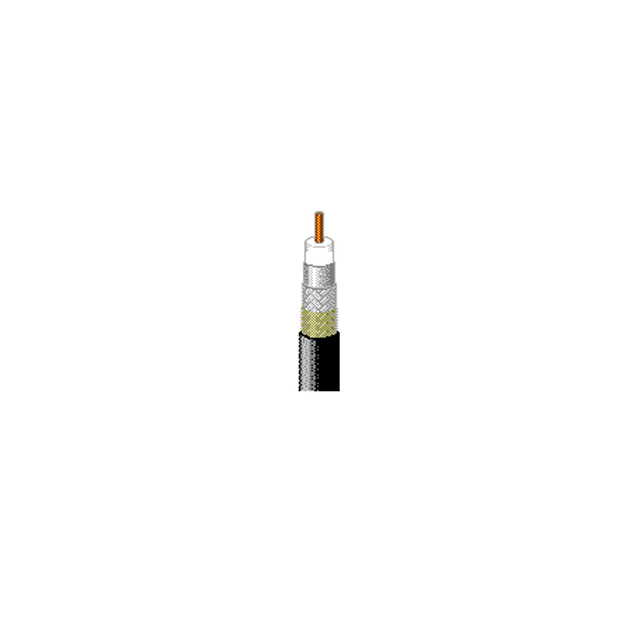

9066 0031000

Active

Belden Inc.

COAX 75 OHM RG6 18AWG DB

Search across all available documentation for this part.

Active

Belden Inc.

COAX 75 OHM RG6 18AWG DB

Technical Specifications

Parameters and characteristics for this part

Specification	9066 0031000

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.18 in
Dielectric Diameter [diameter]	4.57 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	6.86 mm
Jacket (Insulation) Diameter [diameter]	0.27 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Orange
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-55 °C
Shield Coverage	60%, 100%
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	83
Wire Gauge	18 AWG

Part	Jacket (Insulation) Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Conductor Strand	Cable Type	Wire Gauge	Shield Material	Impedance	Dielectric Material	Length	Length	Cable Group	Conductor Material	VoP, Velocity of Propagation	Shield Type	Jacket Color
Belden Inc. 9066 0031000	Polyethylene (PE)	0.18 in	4.57 mm	80 C	-55 °C	6.86 mm	0.27 in	100% 60%	Solid	Coaxial	18 AWG	Aluminum	75 Ohms	Foam Polyethylene (FPE)	304.8 m	1000 ft	RG-6	Copper Coated Steel	83	Braid Foil	Orange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 18 AWG RG-6 1000.0' (304.80m) 75 Ohms
