8810WB 0101000

Active

Belden Inc.

2 #10 PVC/NYL PVC

Search across all available documentation for this part.

Active

Belden Inc.

2 #10 PVC/NYL PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8810WB 0101000

Cable Type	Speaker
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	23 AWG
Features	Rip Cord, Water-Blocked
Jacket (Insulation) Diameter [diameter]	0.462 in
Jacket (Insulation) Diameter [diameter]	11.73 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.27 mm
Jacket (Insulation) Thickness	0.05 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Usage	Audio
Wire Gauge	10 AWG

Part	Wire Gauge	Length	Length	Jacket (Insulation) Material	Features	Jacket Color	Usage	Cable Type	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 8810WB 0101000	10 AWG	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Rip Cord Water-Blocked	Black	Audio	Speaker	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	0.462 in	11.73 mm	Copper Bare	19	23 AWG	2	1.27 mm	0.05 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.23

General part information

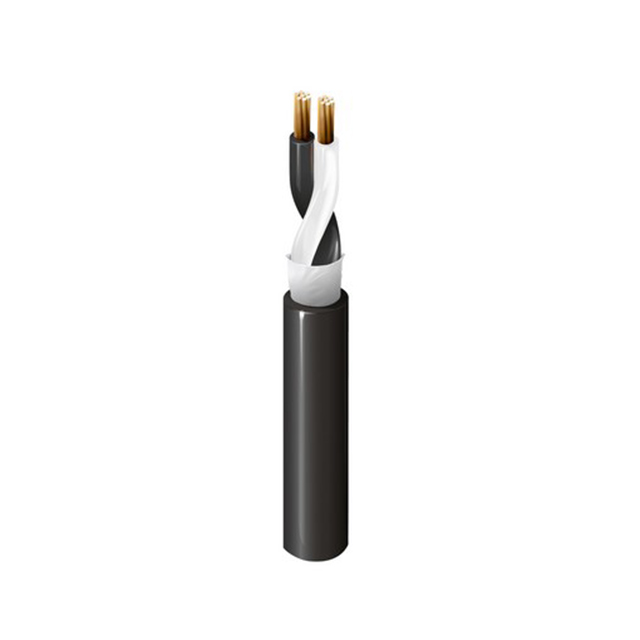

2 (1 Pair) Conductor Speaker Cable Black 10 AWG 1000.0' (304.8m)

Technical documentation and resources
