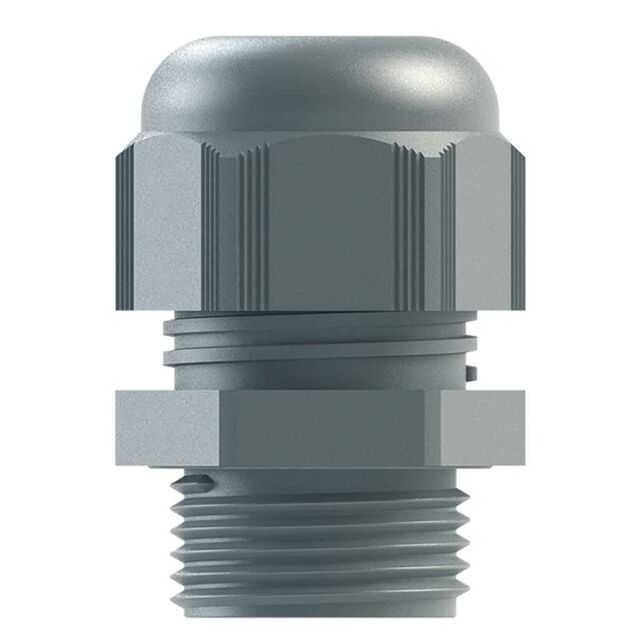

PMG-25R

Active

SAB North America

CABLE GLAND 9-16MM M25 POLYAMIDE

Search across all available documentation for this part.

Active

SAB North America

CABLE GLAND 9-16MM M25 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	PMG-25R

Color	Gray
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.63 "
Outside Cable Diameter (Max) [Max] [diameter]	16 mm
Outside Cable Diameter (Min) [Min] [diameter]	9 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.354 in
Panel Hole Size	0.984 in
Panel Hole Size	25 mm
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	M25x1.5
Type	Cable Gland

CABLE GLAND 9-16MM M25 POLYAMIDE

Part	Color	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Thread Size	Type	Panel Hole Size	Panel Hole Size	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
SAB North America PMG-25R	Gray	IP68 - Dust Tight, Waterproof	9 mm	0.354 in	10 mm	0.394 in	M25x1.5	Cable Gland	0.984 in	25 mm	100 °C	-20 C	0.63 "	16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Gland Polyamide (PA6), Nylon 6 M25x1.5 Gray
