3102C

Active

ELECTROSWITCH

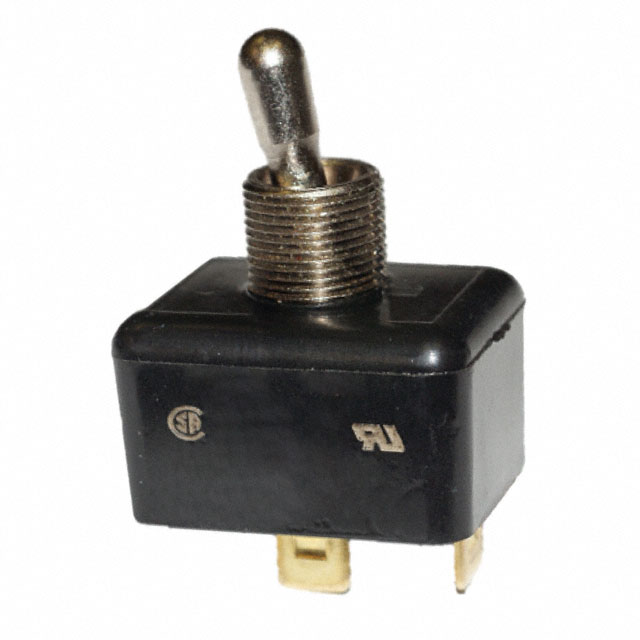

SWITCH TOGGLE SPDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3102C

Active

ELECTROSWITCH

SWITCH TOGGLE SPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3102C	- Series

Actuator Length [x]	14.22 mm	0.5 - 20.62 mm
Actuator Marking	-	No Marking
Actuator Material	-	Brass, Nickel Plated, Nylon, Polyamide (PA)
Actuator Type	Standard Round	Standard Round, Concave (Curved), Flatted
Bushing Thread	15/32-32	15/32-32, Unthreaded
Circuit	SPDT	SPDT, DPDT, SPST, SPST-NO, DPST
Color - Actuator/Cap	-	Red
Current Rating (Amps)	6 A	6 - 500 A
Electrical Life	25000 Steps	10000 - 100000 Cycles
Features	-	Red Actuator
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	-	500000 Cycles
Mounting Type	-	Through Hole, Right Angle
Operating Temperature [Max]	65 °C	65 - 70 °C
Operating Temperature [Min]	-10 °C	-20 - -10 °C
Switch Function	On-Off-On	On-On, Mom-Off-Mom, On-Off-On, On-Off, Off-Mom, On-Off-Mom, On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Solder Lug, Quick Connect - 0.250" (6.3mm), Wire Leads, Screw Terminal, PC Pin
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	-	28 V

- Series

SWITCH TOGGLE SPDT 6A 125V

Part	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Switch Function	Termination Style	Current Rating (Amps)	Illumination	Voltage Rating - AC	Electrical Life	Bushing Thread	Actuator Type	Ingress Protection	Voltage Rating - DC	Actuator Marking	Mechanical Life	Color - Actuator/Cap	Mounting Type	Actuator Material
ELECTROSWITCH 7101D	SPDT	-10 °C	65 °C	14.27 mm	On-On	Solder Lug	6 A	Non-Illuminated	125 V	10000 Cycles	15/32-32	Standard Round
ELECTROSWITCH 7162C	SPDT	-10 °C	65 °C	14.27 mm	Mom-Off-Mom	Quick Connect - 0.250" (6.3mm)	6 A	Non-Illuminated	125 V	10000 Cycles	15/32-32	Standard Round
ELECTROSWITCH 3101D	SPDT	-10 °C	65 °C	14.22 mm	On-On	Wire Leads	6 A	Non-Illuminated	125 V	25000 Steps	15/32-32	Standard Round	IP67 - Dust Tight, Waterproof
ELECTROSWITCH 3302C	SPDT	-10 °C	65 °C	14.22 mm	On-Off-On	Quick Connect - 0.250" (6.3mm)	20 A	Non-Illuminated	125 V	100000 Cycles	15/32-32	Standard Round	IP67 - Dust Tight, Waterproof
ELECTROSWITCH 7262B	SPDT	-10 °C	65 °C	14.27 mm	Mom-Off-Mom	Screw Terminal	20 A	Non-Illuminated	125 V	10000 Cycles	15/32-32	Standard Round
ELECTROSWITCH RK8006	DPDT	-20 C	70 °C		On-Off-On	PC Pin	500 mA		125 V	100000 Cycles		Concave (Curved)		28 V	No Marking	500000 Cycles	Red	Through Hole, Right Angle
ELECTROSWITCH 6630	SPST	-10 °C	65 °C	14.27 mm	On-Off	Wire Leads	12 A	Non-Illuminated	125 V	10000 Cycles	15/32-32	Standard Round							Brass, Nickel Plated
ELECTROSWITCH 7202B	SPDT	-10 °C	65 °C	14.27 mm	On-Off-On	Screw Terminal	20 A	Non-Illuminated	125 V	10000 Cycles	15/32-32	Standard Round
ELECTROSWITCH 7262C	SPDT	-10 °C	65 °C	14.27 mm	Mom-Off-Mom	Quick Connect - 0.250" (6.3mm)	20 A	Non-Illuminated	125 V	10000 Cycles	15/32-32	Standard Round
ELECTROSWITCH 3001D	SPDT	-10 °C	65 °C	14.22 mm	On-On	Wire Leads	15 A	Non-Illuminated	125 V	100000 Cycles	15/32-32	Standard Round	IP67 - Dust Tight, Waterproof
