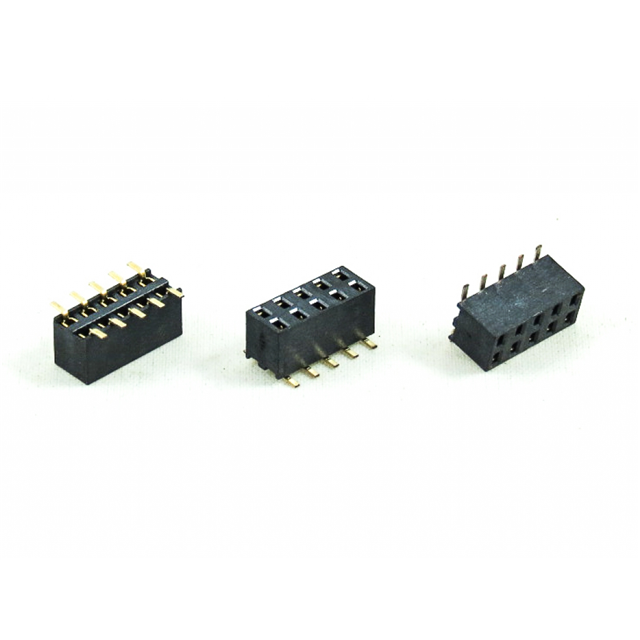

2143-2X05G00DNU-P

Active

Oupiin

PCB SOCKET, DOUBLE ROW, 10 PIN,

Deep-Dive with AI

Search across all available documentation for this part.

2143-2X05G00DNU-P

Active

Oupiin

PCB SOCKET, DOUBLE ROW, 10 PIN,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.81
		500	$ 0.68
		1000	$ 0.54
		1500	$ 0.46
		2000	$ 0.41

Description

General part information

2143 Series

10 Position Socket Connector 0.079" (2.00mm) Surface Mount Gold

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2143-2X05G00DNU-P	2143 Series

Connector Type	Socket	Socket
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Material	Copper Alloy	Phosphor Bronze, Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	-	2 A
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place, Board Guide	Board Guide, Pick and Place
Insulation Color	-	Black
Insulation Height	0.173 in	0.173 in
Insulation Height	4.4 mm	4.4 mm
Insulation Height	-	0.157 in
Insulation Height	-	4 mm
Insulation Material	Plastic	Liquid Crystal Polymer (LCP), Plastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	10	4 - 34
Number of Positions Loaded	All	All
Number of Rows	2	1 - 2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Termination	Solder	Solder

2143 Series

2MM 2MM DOUBLE ROW GOLD 2A 34P PHOSPHOR BRONZE -65℃~+125℃ VERTICAL WELDING 4MM SQUARE HOLE SMD,P=2MM FEMALE HEADERS ROHS

Part	Current Rating (Amps)	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Connector Type	Contact Finish - Post	Number of Rows	Contact Finish Thickness - Post	Insulation Material	Number of Positions Loaded	Mounting Type	Number of Positions	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Shape	Fastening Type	Insulation Height [custom]	Insulation Height [custom]	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Features	Material Flammability Rating	Insulation Height	Insulation Height
Oupiin 2143-A2X17G00DNU	2 A	Gold	0.079 in	2 mm	Female Socket	Socket	Gold	2	Flash	Liquid Crystal Polymer (LCP)	All	Surface Mount	34	Black	125 °C	-65 ░C	Phosphor Bronze	Square	Push-Pull	0.157 in	4 mm	Solder	0.079 in	2 mm	Flash	Board Guide	UL94 V-0
Oupiin 2143-1X18G00DAT-P		Gold			Female Socket	Socket	Gold	1	Flash	Plastic	All	Surface Mount	18		125 °C	-65 ░C	Copper Alloy	Square	Push-Pull			Solder	0.079 in	2 mm	Flash	Pick and Place	UL94 V-0	0.173 in	4.4 mm
Oupiin 2143-1X11G00DAT-P		Gold			Female Socket	Socket	Gold	1	Flash	Plastic	All	Surface Mount	11		125 °C	-65 ░C	Copper Alloy	Square	Push-Pull			Solder	0.079 in	2 mm	Flash	Pick and Place	UL94 V-0	0.173 in	4.4 mm
Oupiin 2143-1X04G00DAT-P		Gold			Female Socket	Socket	Gold	1	Flash	Plastic	All	Surface Mount	4		125 °C	-65 ░C	Copper Alloy	Square	Push-Pull			Solder	0.079 in	2 mm	Flash	Pick and Place	UL94 V-0	0.173 in	4.4 mm
Oupiin 2143-2X12G00DPU		Gold	0.079 in	2 mm	Female Socket	Socket	Gold	2	Flash	Plastic	All	Surface Mount	24		125 °C	-65 ░C	Copper Alloy	Square	Push-Pull			Solder	0.079 in	2 mm	Flash	Board Guide	UL94 V-0	0.173 in	4.4 mm
Oupiin 2143-2X17G00DNU		Gold	0.079 in	2 mm	Female Socket	Socket	Gold	2	Flash	Plastic	All	Surface Mount	34		125 °C	-65 ░C	Copper Alloy	Square	Push-Pull			Solder	0.079 in	2 mm	Flash	Board Guide	UL94 V-0	0.173 in	4.4 mm
Oupiin 2143-2X05G00DNU-P		Gold	0.079 in	2 mm	Female Socket	Socket	Gold	2	Flash	Plastic	All	Surface Mount	10		125 °C	-65 ░C	Copper Alloy	Square	Push-Pull			Solder	0.079 in	2 mm	Flash	Board Guide, Pick and Place	UL94 V-0	0.173 in	4.4 mm
