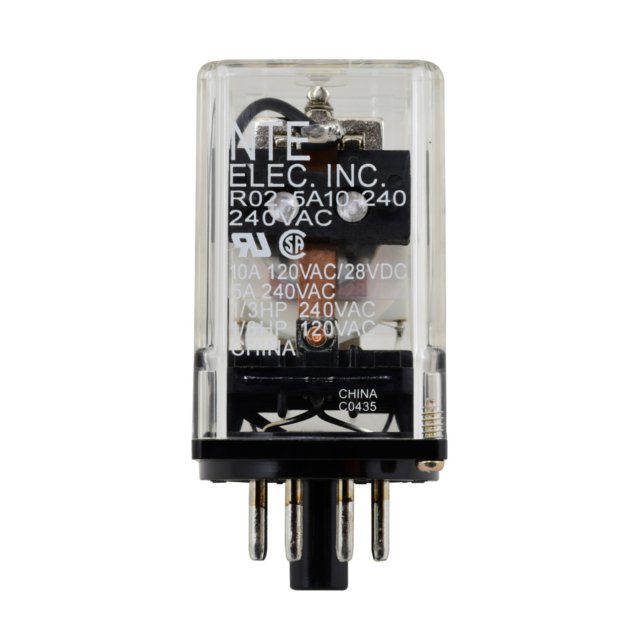

R02-5A10-240

Active

NTE Electronics, Inc

RELAY GEN PURPOSE SPDT 10A 240V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

RELAY GEN PURPOSE SPDT 10A 240V

Technical Specifications

Parameters and characteristics for this part

Specification	R02-5A10-240

Coil Voltage	240 VAC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	10 A
Operate Time	25 ms
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Relay Type	General Purpose
Release Time	20 ms
Termination Style	Plug In, 8 Pin (Octal)

Part	Contact Form	Relay Type	Termination Style	Release Time	Operate Time	Coil Voltage	Contact Rating (Current)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
NTE Electronics, Inc R02-5A10-240	SPDT (1 Form C)	General Purpose	Plug In 8 Pin (Octal)	20 ms	25 ms	240 VAC	10 A	-10 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 240VAC Coil
