HGG.3B.324.CLLPV

Active

LEMO

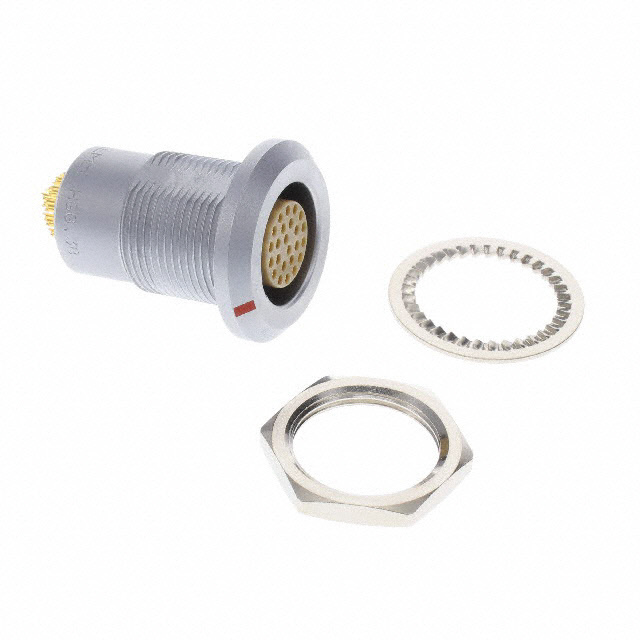

CONN RCPT FMALE 24P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HGG.3B.324.CLLPV

Active

LEMO

CONN RCPT FMALE 24P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HGG.3B.324.CLLPV	HGG.3B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	4 A	4 - 35 A
Fastening Type	Push-Pull	Push-Pull
Features	Vacuumtight, Potted	Vacuumtight, Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	24	2 - 24
Number of Positions	-	16
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	324	302 - 324
Shielding	Shielded	Shielded

HGG.3B Series

CONN RCPT FMALE 14P SOLDER CUP

Part	Material Flammability Rating	Ingress Protection	Shell Finish	Insert Material	Features	Connector Type	Mounting Feature	Current Rating (Amps)	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Orientation	Color	Shell Size - Insert	Contact Finish - Mating	Shell Material	Contact Material	Number of Positions
LEMO HGG.3B.314.CLLPV	UL94 V-0	IP68 - Dust Tight, Waterproof	Chrome	Polyetheretherketone (PEEK)	Potted, Vacuumtight	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	9 A	Shielded	1.5 Ám	59 Áin	Push-Pull	14	80 C	-20 C	Metal	G	Silver	314	Gold	Brass	Bronze
LEMO HGG.3B.304.CLLPV	UL94 V-0	IP68 - Dust Tight, Waterproof	Chrome	Polyetheretherketone (PEEK)	Potted, Vacuumtight	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	19 A	Shielded	1.5 Ám	59 Áin	Push-Pull	4	80 C	-20 C	Metal	G	Silver	304	Gold	Brass	Bronze
LEMO HGG.3B.303.CLLP	UL94 V-0	IP68 - Dust Tight, Waterproof	Chrome	Polyetheretherketone (PEEK)	Potted	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	25 A	Shielded	1.5 Ám	59 Áin	Push-Pull		80 C	-20 C	Metal	G	Silver	303	Gold	Brass	Bronze
LEMO HGG.3B.314.CLLP	UL94 V-0	IP68 - Dust Tight, Waterproof	Chrome	Polyetheretherketone (PEEK)	Potted	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	9 A	Shielded	1.5 Ám	59 Áin	Push-Pull	14	80 C	-20 C	Metal	G	Silver	314	Gold	Brass	Bronze
LEMO HGG.3B.322.CLLPV	UL94 V-0	IP68 - Dust Tight, Waterproof	Chrome	Polyetheretherketone (PEEK)	Potted, Vacuumtight	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	5.5 Amps	Shielded	1.5 Ám	59 Áin	Push-Pull	22 positions	80 C	-20 C	Metal	G	Silver	322	Gold	Brass	Bronze
LEMO HGG.3B.302.CLLPV	UL94 V-0	IP68 - Dust Tight, Waterproof	Chrome	Polyetheretherketone (PEEK)	Potted, Vacuumtight	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	35 A	Shielded	1.5 Ám	59 Áin	Push-Pull	2	80 C	-20 C	Metal	G	Silver	302	Gold	Brass	Bronze
LEMO HGG.3B.310.CLLPV	UL94 V-0	IP68 - Dust Tight, Waterproof	Chrome	Polyetheretherketone (PEEK)	Potted, Vacuumtight	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	12 A	Shielded	1.5 Ám	59 Áin	Push-Pull	10	80 C	-20 C	Metal	G	Silver	310	Gold	Brass	Bronze
LEMO HGG.3B.316.CLLPV	UL94 V-0	IP68 - Dust Tight, Waterproof	Chrome	Polyetheretherketone (PEEK)	Potted, Vacuumtight	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	8 A	Shielded	1.5 Ám	59 Áin	Push-Pull		80 C	-20 C	Metal	G	Silver	316	Gold	Brass	Bronze	16
LEMO HGG.3B.307.CLLP	UL94 V-0	IP68 - Dust Tight, Waterproof	Chrome	Polyetheretherketone (PEEK)	Potted	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	15 A	Shielded	1.5 Ám	59 Áin	Push-Pull	7	80 C	-20 C	Metal	G	Silver	307	Gold	Brass	Bronze
LEMO HGG.3B.324.CLLPV	UL94 V-0	IP68 - Dust Tight, Waterproof	Chrome	Polyetheretherketone (PEEK)	Potted, Vacuumtight	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	4 A	Shielded	1.5 Ám	59 Áin	Push-Pull	24	80 C	-20 C	Metal	G	Silver	324	Gold	Brass	Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 213.61
		10	$ 167.22
		25	$ 152.58
		50	$ 142.72

Description

General part information

HGG.3B Series

24 Position Circular Connector Receptacle, Female Sockets Solder Cup
