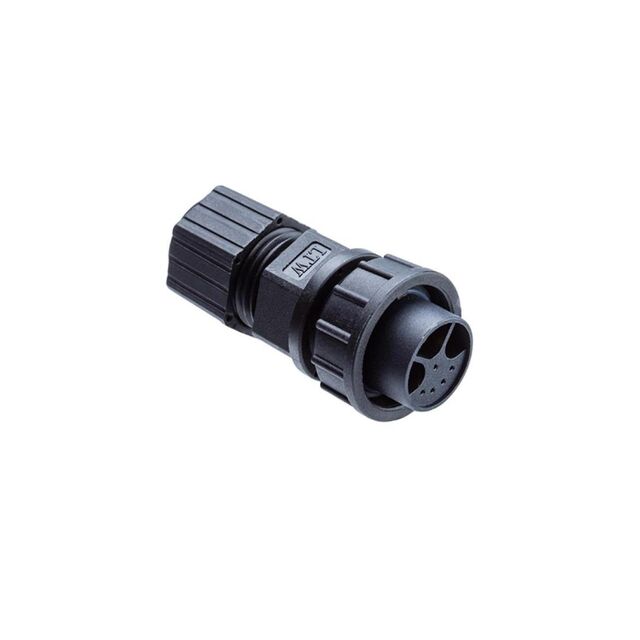

DC-07BFFA-SL7001
ActiveAmphenol LTW
LARGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DC-07BFFA-SL7001 |
|---|---|
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [Max] [custom] | 10.8 mm |
| Cable Opening [Max] [custom] | 0.425 in |
| Cable Opening [Min] [custom] | 0.217 in |
| Cable Opening [Min] [custom] | 5.5 mm |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 20 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | D |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.82 | |
| 10 | $ 15.44 | |||
| 100 | $ 12.73 | |||
Description
General part information
DC-07BFFA Series
7 Position Circular Connector Plug, Female Sockets Solder Cup
