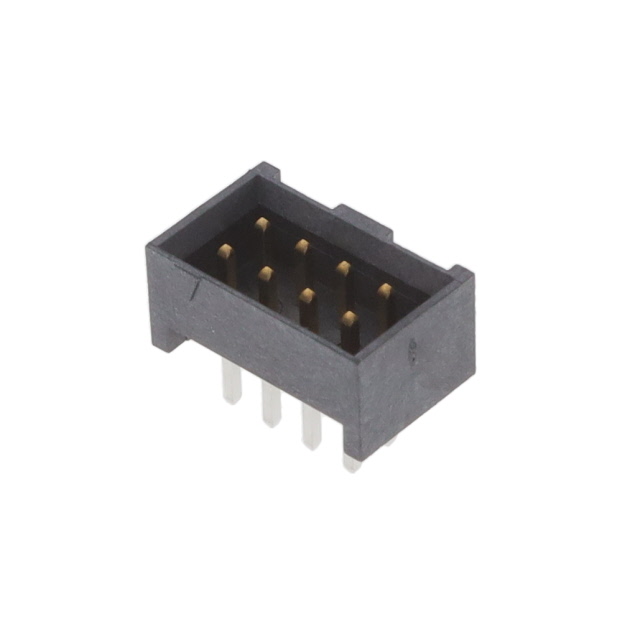

LTMM-104-02-F-D

Active

Samtec Inc.

CONN HEADER VERT 8POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLTMM Series Other Related Documents 01 LTMM Datasheet +2

LTMM-104-02-F-D

Active

Samtec Inc.

CONN HEADER VERT 8POS 2MM

Deep-Dive with AI

DocumentsLTMM Series Other Related Documents 01 LTMM Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTMM-104-02-F-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.117 in
Contact Length - Post	2.97 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.83 mm
Insulation Height	0.19 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

LTMM-104 Series

Part	Contact Material	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Rows	Contact Finish - Post	Mounting Type	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating	Number of Positions	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Insulation Color	Termination	Connector Type	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded
Samtec Inc. LTMM-104-02-T-D-RA	Phosphor Bronze	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	Male Pin	2	Tin	Through Hole Right Angle	6.03 mm	0.237 in	0.079 in	2 mm	3.05 mm	0.12 in	8	Push-Pull	0.09 "	2.29 mm	All	Black	Solder	Header	Shrouded - 4 Wall	0.079 in	2 mm	Square
Samtec Inc. LTMM-104-01-L-D-SM	Phosphor Bronze	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	Male Pin	2	Tin	Surface Mount	4.83 mm	0.19 in	0.079 in	2 mm	2.54 mm	0.1 in	8	Push-Pull			All	Black	Solder	Header	Shrouded - 4 Wall	0.079 in	2 mm	Square	10 çin	0.25 çm	Gold
Samtec Inc. LTMM-104-02-G-D-SM-LC	Phosphor Bronze	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Male Pin	2	Gold	Surface Mount	4.83 mm	0.19 in	0.079 in	2 mm	3.05 mm	0.12 in	8	Push-Pull			All	Black	Solder	Header	Shrouded - 4 Wall	0.079 in	2 mm	Square	20 µin	0.51 µm	Gold	3 µin	0.076 µm
Samtec Inc. LTMM-104-02-S-D-RA	Phosphor Bronze	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	Male Pin	2	Tin	Through Hole Right Angle	6.03 mm	0.237 in	0.079 in	2 mm	3.05 mm	0.12 in	8	Push-Pull	0.09 "	2.29 mm	All	Black	Solder	Header	Shrouded - 4 Wall	0.079 in	2 mm	Square	30 Áin	0.76 Ám	Gold
Samtec Inc. LTMM-104-02-F-D	Phosphor Bronze	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	Male Pin	2	Tin	Through Hole	4.83 mm	0.19 in	0.079 in	2 mm	3.05 mm	0.12 in	8	Push-Pull	0.117 in	2.97 mm	All	Black	Solder	Header	Shrouded - 4 Wall	0.079 in	2 mm	Square	3 µin	0.076 µm	Gold
Samtec Inc. LTMM-104-01-T-D-RA-04	Phosphor Bronze	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	Male Pin	2	Tin	Through Hole Right Angle	6.03 mm	0.237 in	0.079 in	2 mm	2.54 mm	0.1 in	8	Push-Pull	0.09 "	2.29 mm		Black	Solder	Header	Shrouded - 4 Wall	0.079 in	2 mm	Square						7
Samtec Inc. LTMM-104-02-F-D-RA-01	Phosphor Bronze	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	Male Pin	2	Tin	Through Hole Right Angle	6.03 mm	0.237 in	0.079 in	2 mm	3.05 mm	0.12 in	8	Push-Pull	0.09 "	2.29 mm		Black	Solder	Header	Shrouded - 4 Wall	0.079 in	2 mm	Square	3 µin	0.076 µm	Gold			7
Samtec Inc. LTMM-104-01-S-D	Phosphor Bronze	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	Male Pin	2	Tin	Through Hole	4.83 mm	0.19 in	0.079 in	2 mm	2.54 mm	0.1 in	8	Push-Pull	0.09 "	2.29 mm	All	Black	Solder	Header	Shrouded - 4 Wall	0.079 in	2 mm	Square	30 Áin	0.76 Ám	Gold
Samtec Inc. LTMM-104-02-S-D-RA-01	Phosphor Bronze	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Male Pin	2	Tin	Through Hole Right Angle	6.03 mm	0.237 in	0.079 in	2 mm	3.05 mm	0.12 in	8	Push-Pull	0.09 "	2.29 mm		Black	Solder	Header	Shrouded - 4 Wall	0.079 in	2 mm	Square	30 Áin	0.76 Ám	Gold			7
Samtec Inc. LTMM-104-01-L-D	Phosphor Bronze	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	Male Pin	2	Tin	Through Hole	4.83 mm	0.19 in	0.079 in	2 mm	2.54 mm	0.1 in	8	Push-Pull	0.09 "	2.29 mm	All	Black	Solder	Header	Shrouded - 4 Wall	0.079 in	2 mm	Square	10 çin	0.25 çm	Gold
