C2466A.41.10

Active

Prysmian Group

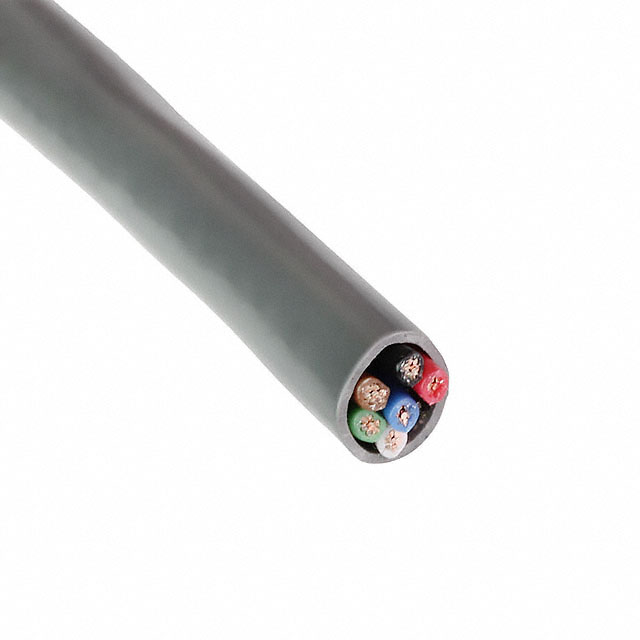

CABLE 6COND 24AWG GRAY 100'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 6COND 24AWG GRAY 100'

Technical Specifications

Parameters and characteristics for this part

Specification	C2466A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.2 in
Jacket (Insulation) Diameter [diameter]	5.08 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m, 15.24 m
Length [x]	50 ft, 100 ft
Length [x]	30.5 m
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	24 AWG

Part	Length	Length	Voltage	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Length [x]	Conductor Insulation	Cable Type	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Usage	Jacket Color
Prysmian Group C2466A.41.10	1000 ft	15.24 m 304.8 m	300 V	Poly-Vinyl Chloride (PVC)	0.2 in	5.08 mm	50 ft 100 ft	-20 C	80 C	Copper Tinned	30.5 m	Poly-Vinyl Chloride (PVC)	Multi-Conductor	24 AWG	32 AWG	7	6	Communication Control	Gray
Prysmian Group C2466A.18.10			300 V	Poly-Vinyl Chloride (PVC)	0.2 in	5.08 mm	500 '	-20 C	80 C	Copper Tinned	152.4 m	Poly-Vinyl Chloride (PVC)	Multi-Conductor	24 AWG	32 AWG	7	6	Communication Control	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable Gray 24 AWG 1000.0' (304.8m)
