Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-OUT01A1 | X-NUCLEO-OUT01A1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Driver | Driver |
| Interconnect System | ST Morpho, Arduino R3 Shield | ST Morpho, Arduino R3 Shield |
| Platform | Nucleo | Nucleo |
| Suggested Programming Environment | STM32Cube | STM32Cube |
| Type | Power Management | Power Management |
| Utilized IC / Part | ISO8200BQ | ISO8200BQ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
X-NUCLEO-OUT01A1 Series
Industrial Digital output expansion board based on ISO8200BQ for STM32 Nucleo
| Part | Utilized IC / Part | Platform | Suggested Programming Environment | Function | Contents | Type | Interconnect System |
|---|---|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-OUT01A1 | ISO8200BQ | Nucleo | STM32Cube | Driver | Board(s) | Power Management | Arduino R3 Shield, ST Morpho |
STMicroelectronics X-NUCLEO-OUT01A1 |
Description
General part information
X-NUCLEO-OUT01A1 Series

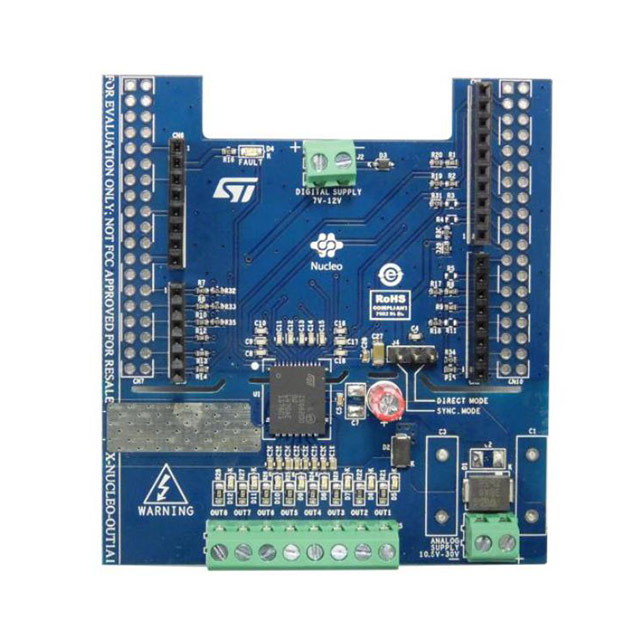

The X-NUCLEO-OUT01A1 is an Industrial Digital output expansion board based on ISO8200BQ for STM32 Nucleo boards.
It provides an affordable and easy-to-use solution involving galvanic insulation embedded in industrial power switch driver applications.
The Arduino™ UNO R3 connector compatibility allows to connect the following STM32 Nucleo development boards: NUCLEO-F103RB, NUCLEO-F302R8 and NUCLEO-F401RE.
