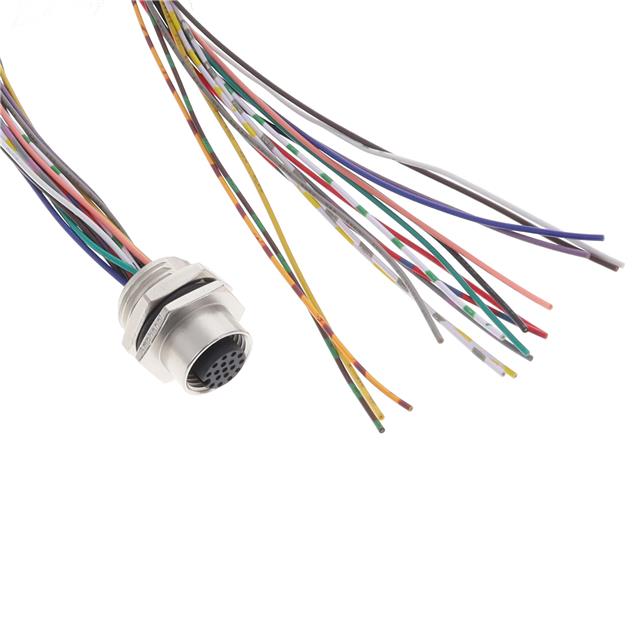

M12A-17PFFC-SH8C20

Active

Amphenol LTW

CBL CIRC 17POS FEM TO WIRE 65.6'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M12A-17PFFC-SH8C20

Active

Amphenol LTW

CBL CIRC 17POS FEM TO WIRE 65.6'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-17PFFC-SH8C20

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Panel Mount
1st Connector Number of Positions [custom]	17
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Type	Individual
Color	Multiple
Ingress Protection	IP68 - Dust Tight, Waterproof
Length	200 mm
Length [x]	0.66 ft
Shielding	Shielded
Usage	Industrial Environments

M12A-17 Series

Part	Cable Type	1st Connector Gender	1st Connector Number of Positions [custom]	Assembly Configuration	Ingress Protection	Usage	1st Connector Number of Positions Loaded	Color	1st Connector Orientation	Shielding	2nd Connector Type	1st Connector Mounting Type	1st Connector Type	1st Connector Shell Size - Insert	Cable Material	Length [x]	Length [x]	Length
Amphenol LTW M12A-17PMMC-SF8C20	Individual	Male Pins	17	Standard	IP68 - Dust Tight Waterproof	Industrial Environments	All	Multiple	A	Shielded	Wire Leads	Panel Mount	Receptacle	M12
Amphenol LTW M12A-17BMMM-SL8D02	Round	Male Pins	17	Standard	IP68 - Dust Tight Waterproof	Industrial Environments	All	Black	A	Shielded	Wire Leads	Free Hanging (In-Line)	Receptacle	M12	Polyvinyl Chloride (PVC)	2 m	6.56 ft
Amphenol LTW M12A-17PFFC-SH8C20	Individual	Female Sockets	17	Standard	IP68 - Dust Tight Waterproof	Industrial Environments	All	Multiple	A	Shielded	Wire Leads	Panel Mount	Plug	M12			0.66 ft	200 mm
Amphenol LTW M12A-17PFFC-SH8B20	Individual	Female Sockets	17	Standard	IP68 - Dust Tight Waterproof	Industrial Environments	All	Multiple	A	Shielded	Wire Leads	Panel Mount	Plug	M12	Polyurethane (PUR)
Amphenol LTW M12A-17BFFM-SL8D01	Round	Female Sockets	17	Standard	IP68 - Dust Tight Waterproof	Industrial Environments	All	Black	A	Shielded	Wire Leads	Free Hanging (In-Line)	Plug	M12	Polyvinyl Chloride (PVC)	1 m	3.28 ft
Amphenol LTW M12A-17PFFC-SF8C20	Individual	Female Sockets	17	Standard	IP68 - Dust Tight Waterproof	Industrial Environments	All	Multiple	A	Shielded	Wire Leads	Panel Mount	Plug	M12
Amphenol LTW M12A-17PMMC-SF8B20	Individual	Male Pins	17	Standard	IP68 - Dust Tight Waterproof	Industrial Environments	All	Multiple	A	Shielded	Wire Leads	Panel Mount	Receptacle	M12	Polyurethane (PUR)
Amphenol LTW M12A-17BFFM-SL8B02	Round	Female Sockets	17	Standard	IP68 - Dust Tight Waterproof	Industrial Environments	All	Black	A	Shielded	Wire Leads	Free Hanging (In-Line)	Plug	M12	Polyurethane (PUR)	2 m	6.56 ft
Amphenol LTW M12A-17BMMM-SL8B01	Round	Male Pins	17	Standard	IP68 - Dust Tight Waterproof	Industrial Environments	All	Black	A	Shielded	Wire Leads	Free Hanging (In-Line)	Receptacle	M12	Polyurethane (PUR)	1 m	3.28 ft
Amphenol LTW M12A-17BMMM-SL8D01	Round	Male Pins	17	Standard	IP68 - Dust Tight Waterproof	Industrial Environments	All	Black	A	Shielded	Wire Leads	Free Hanging (In-Line)	Receptacle	M12	Polyvinyl Chloride (PVC)	1 m	3.28 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 21.83
		10	$ 18.55
		25	$ 17.39
		50	$ 16.56
		100	$ 15.77
		250	$ 14.78
		500	$ 14.08

Description

General part information

M12A-17 Series

Circular Cable Assembly Shielded 0.66' (200.00mm)
