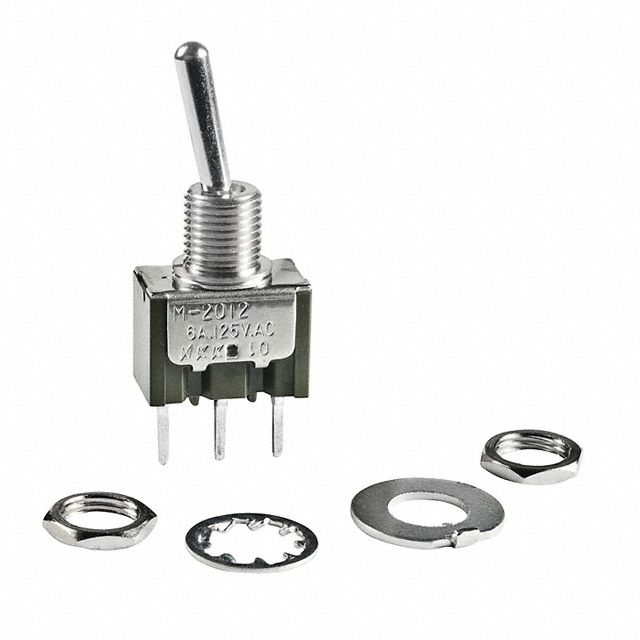

SWITCH TOGGLE SPDT 6A 125V

M2012SA1W03

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Description Specifications Series Pricing CAD Documents

Description

General part information

M2012SA Series

Toggle Switch SPDT Panel Mount

Technical Specifications

Parameters and characteristics for this part

Specification	M2012SA1W03

Actuator Length	12.28 mm
Actuator Material	Chrome Plated, Brass
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating	4 A, 6 A
Electrical Life (Cycles)	25000
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Diameter	6.5 mm
Panel Cutout Shape	Circular
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2012SA Series

Part	Voltage Rating - AC	Termination Style	Panel Cutout Diameter	Panel Cutout Shape	Features	Mounting Type	Illumination	Switch Function	Bushing Thread	Current Rating	Circuit	Actuator Length	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Type	Voltage Rating - DC	Actuator Material	Electrical Life (Cycles)
NKK Switches M2012SA2W13	125 V	PC Pin	6.5 mm	Circular	Epoxy Sealed Terminals	Through Hole	Non-Illuminated	On-On	Unthreaded	4 A 6 A	SPDT	12.28 mm	85 °C	-30 °C	Standard Round	30 V	Brass Chrome Plated	25000
NKK Switches M2012SA2W40	125 V	PC Pin	6.5 mm	Circular	Epoxy Sealed Terminals	Right Angle Through Hole Vertical	Non-Illuminated	On-On	Unthreaded	4 A 6 A	SPDT	12.28 mm	85 °C	-30 °C	Standard Round	30 V	Brass Chrome Plated	25000
NKK Switches M2012SA1W13-BA	125 V	PC Pin	6.5 mm	Circular	Black Cap	Panel Mount	Non-Illuminated	On-On	1/4-40	4 A 6 A	SPDT	13.5 mm	85 °C	-30 °C	Standard Round with Cap	30 V	Brass Chrome Plated	25000
NKK Switches M2012SA1W45	125 V	PC Pin	6.5 mm	Circular	Epoxy Sealed Terminals	Panel Mount Right Angle Vertical	Non-Illuminated	On-On	1/4-40	4 A 6 A	SPDT	12.28 mm	85 °C	-30 °C	Standard Round	30 V	Brass Chrome Plated	25000
NKK Switches M2012SA1W03	125 V	PC Pin	6.5 mm	Circular	Epoxy Sealed Terminals	Panel Mount	Non-Illuminated	On-On	1/4-40	4 A 6 A	SPDT	12.28 mm	85 °C	-30 °C	Standard Round	30 V	Brass Chrome Plated	25000
NKK Switches M2012SA1G15	28 V	PC Pin	6.5 mm	Circular	Epoxy Sealed Terminals	Panel Mount	Non-Illuminated	On-On	1/4-40	0.4 VA	SPDT	12.28 mm	85 °C	-30 °C	Standard Round	28 V	Brass Chrome Plated	50000
NKK Switches M2012SA2W13-BC	125 V	PC Pin	6.5 mm	Circular	Red Cap	Through Hole	Non-Illuminated	On-On	Unthreaded	4 A 6 A	SPDT	12.28 mm	85 °C	-30 °C	Standard Round with Cap	30 V	Brass Chrome Plated	25000
NKK Switches M2012SA2A13	125 V	PC Pin	6.5 mm	Circular	Epoxy Sealed Terminals	Through Hole	Non-Illuminated	On-On	Unthreaded	4 A 6 A	SPDT	12.28 mm	85 °C	-30 °C	Standard Round	30 V	Brass Chrome Plated	25000
NKK Switches M2012SA1W40	125 V	PC Pin	6.5 mm	Circular	Epoxy Sealed Terminals	Panel Mount Right Angle Vertical	Non-Illuminated	On-On	1/4-40	4 A 6 A	SPDT	12.28 mm	85 °C	-30 °C	Standard Round	30 V	Brass Chrome Plated	25000
