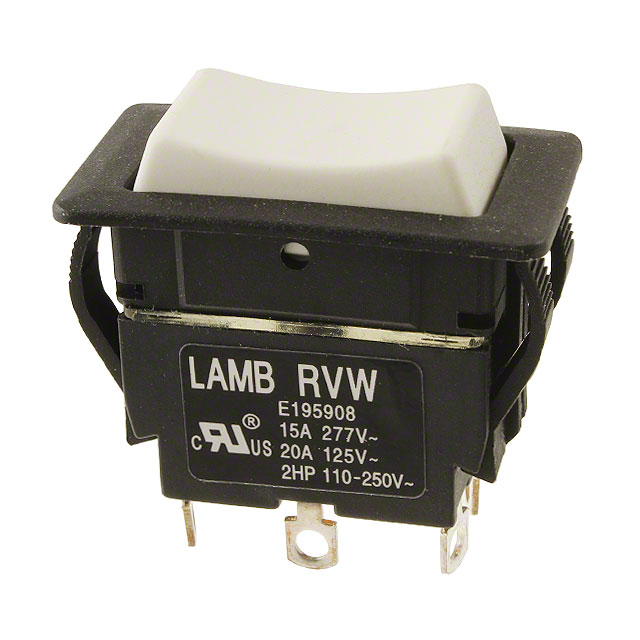

RVW56D1200

Active

E-Switch

SWITCH ROCKER DPDT 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER DPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RVW56D1200

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Ingress Protection	IP54 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.8 mm
Panel Cutout Dimensions [y]	21 mm
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Actuator Type	Switch Function	Mounting Type	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage Rating - AC	Actuator Marking	Current Rating (Amps)	Circuit	Color - Actuator/Cap	Ingress Protection	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
E-Switch RVW56D1200	Concave (Curved)	On-Off-On	Panel Mount Snap-In	6000 Cycles	55 °C	-20 C	Solder Lug	125 V	No Marking	20 A	DPDT	White	IP54 - Dust Protected Water Resistant	36.8 mm	21 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 4.99

General part information

Rocker Switch DPDT 20A (AC) 125 V Panel Mount, Snap-In
