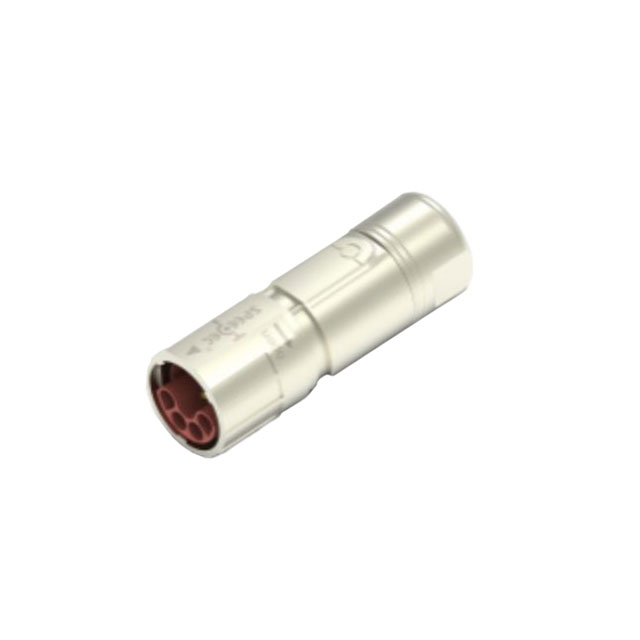

HSA008N00550100000

Active

TE Intercontec

CONN PLG HSG FMALE 11POS INLINE

Search across all available documentation for this part.

Active

TE Intercontec

CONN PLG HSG FMALE 11POS INLINE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11 (6 + 4 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	HSA008N00550100000	HSA00 Series

Connector Type	Plug Housing	Plug Housing
Contact Shape	Circular	Circular
Fastening Type	Push-Twist	Push-Twist
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Housing Color	Silver	Silver
Includes	1 Backshell, 1 Connector, 1 Cable Clamp	1 Backshell, 1 Connector, 1 Cable Clamp
Ingress Protection	IP66/IP67	IP66/IP67
Insert Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	11 (6 + 4 Power + PE)	11 (6 + 4 Power + PE)
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation	Keyed	Keyed
Shell Finish	Nickel	Nickel
Shell Material	Zinc Die Cast	Zinc Die Cast
Shielding	Shielded	Shielded
Type	For Female Sockets	For Female Sockets

CONN PLG HSG FMALE 11POS INLINE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Note	Ingress Protection	Shielding	Material Flammability Rating	Includes	Connector Type	Orientation	Housing Color	Features	Shell Finish	Shell Material	Insert Material	Fastening Type	Type	Contact Shape	Number of Positions	Mounting Type
TE Intercontec HSA002N00590100000	-20 C	130 °C	Contacts Not Included	IP66/IP67	Shielded	UL94 V-0	1 Backshell, 1 Cable Clamp, 1 Connector	Plug Housing	Keyed	Silver	Backshell, Cable Clamp, Coupling Nut	Nickel	Zinc Die Cast	Polyamide (PA66), Nylon 6/6	Push-Twist	For Female Sockets	Circular	11 (6 + 4 Power + PE)	Free Hanging (In-Line)
TE Intercontec HSA002N00420100000	-20 C	130 °C	Contacts Not Included	IP66/IP67	Shielded	UL94 V-0	1 Backshell, 1 Cable Clamp, 1 Connector	Plug Housing	Keyed	Silver	Backshell, Cable Clamp, Coupling Nut	Nickel	Zinc Die Cast	Polyamide (PA66), Nylon 6/6	Push-Twist	For Female Sockets	Circular	11 (6 + 4 Power + PE)	Free Hanging (In-Line)
TE Intercontec HSA008N00550100000	-20 C	130 °C	Contacts Not Included	IP66/IP67	Shielded	UL94 V-0	1 Backshell, 1 Cable Clamp, 1 Connector	Plug Housing	Keyed	Silver	Backshell, Cable Clamp, Coupling Nut	Nickel	Zinc Die Cast	Polyamide (PA66), Nylon 6/6	Push-Twist	For Female Sockets	Circular	11 (6 + 4 Power + PE)	Free Hanging (In-Line)
