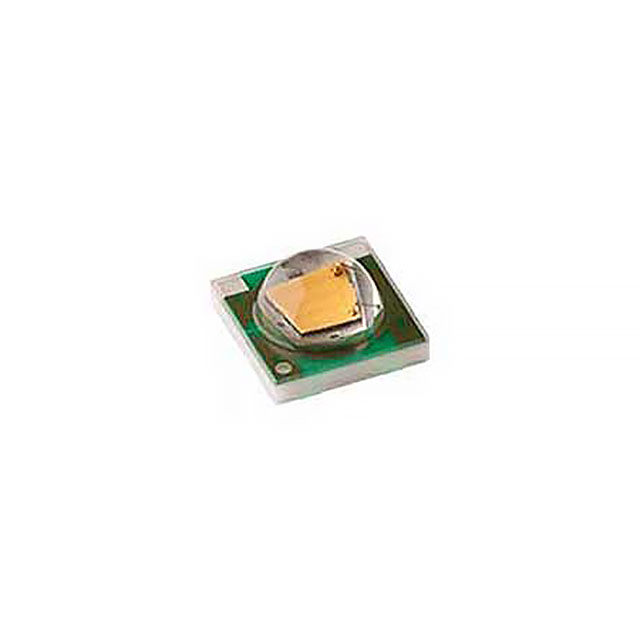

XPEFAR-L1-0000-00501

Obsolete

Cree LED

LED XLAMP XPE RED 730NM SMD

Search across all available documentation for this part.

Obsolete

Cree LED

LED XLAMP XPE RED 730NM SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color XLamp® XP-E Red 730nm (720nm ~ 740nm) 1414 (3535 Metric)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	XPEFAR-L1-0000-00501	XPEFAR Series

Color	Red	Red
Current - Max [Max]	1 A	1 A
Current - Test	350 mA	350 mA
Luminous Flux @ Current/Temperature	193 mW	193 - 275 mW
Luminous Flux @ Current/Temperature [Max]	210 mW	210 mW
Luminous Flux @ Current/Temperature [Min]	175 mW	175 mW
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.45 mm	3.45 mm
Size / Dimension [x]	0.136 in	0.136 in
Size / Dimension [y]	0.136 in	0.136 in
Size / Dimension [y]	3.45 mm	3.45 mm
Supplier Device Package	SMD	SMD
Thermal Resistance of Package [custom]	8 °C/W	8 °C/W
Viewing Angle	130 °	130 °
Voltage - Forward (Vf) (Typ)	1.9 V	1.9 V
Wavelength [Max]	740 nm	740 nm
Wavelength [Min]	720 nm	720 nm

LED XLAMP XPE RED 730NM SMD

Part	Color	Package / Case	Package / Case	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Wavelength [Min]	Wavelength [Max]	Current - Max [Max]	Supplier Device Package	Viewing Angle	Thermal Resistance of Package [custom]	Mounting Type	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Voltage - Forward (Vf) (Typ)
Cree LED XPEFAR-L1-0000-00501	Red	3535 Metric	1414	350 mA	3.45 mm	0.136 in	0.136 in	3.45 mm	720 nm	740 nm	1 A	SMD	130 °	8 °C/W	Surface Mount	193 mW	175 mW	210 mW	1.9 V
Cree LED XPEFAR-L1-R250-00701	Red	3535 Metric	1414	350 mA	3.45 mm	0.136 in	0.136 in	3.45 mm	720 nm	740 nm	1 A	SMD	130 °	8 °C/W	Surface Mount	275 mW			1.9 V
Cree LED XPEFAR-L1-R250-00601	Red	3535 Metric	1414	350 mA	3.45 mm	0.136 in	0.136 in	3.45 mm	720 nm	740 nm	1 A	SMD	130 °	8 °C/W	Surface Mount	230 mW			1.9 V
