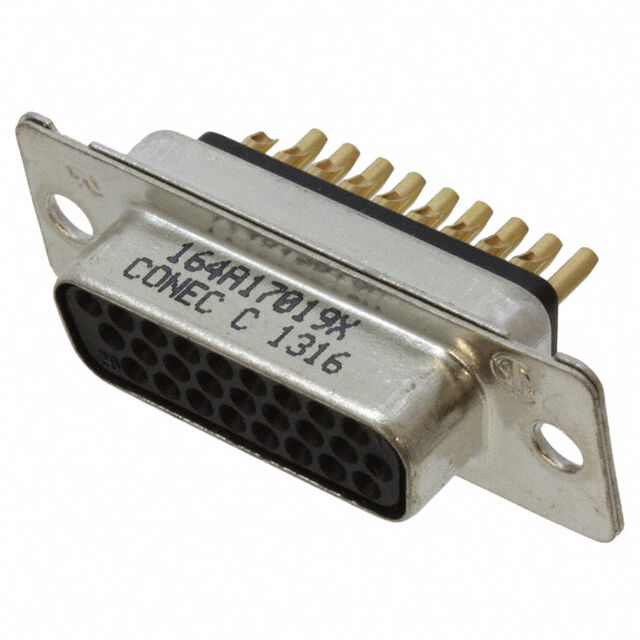

164A17019X

Active

Amphenol CONEC

CONN D-SUB HD RCPT 26P SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

164A17019X

Active

Amphenol CONEC

CONN D-SUB HD RCPT 26P SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	164A17019X

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Voltage Rating	60 VDC
Wire Gauge	22 AWG

164A170 Series

Part	Number of Rows	Dielectric Material	Contact Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Voltage Rating	Contact Material	Connector Style	Mounting Type	Contact Finish Thickness	Color	Material Flammability Rating	Connector Type	Contact Finish	Wire Gauge	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol CONEC 164A17019X	3	Polybutylene Terephthalate (PBT) Glass Filled	Signal	2	(DA A) High Density	60 VDC	Copper Alloy	D-Sub High Density	Free Hanging (In-Line)	Flash	Black	UL94 V-0	Receptacle Female Sockets	Gold	22 AWG	26	-55 °C	125 °C	Housing/Shell (Unthreaded)	3 A
Amphenol CONEC 164A17079X	3	Polybutylene Terephthalate (PBT) Glass Filled	Signal			60 VDC	Copper Alloy	D-Sub High Density	Free Hanging (In-Line)		Black	UL94 V-0	Receptacle Female Sockets	Gold		44	-55 °C	125 °C	Cable Side	3 A	8 çin	0.203 çm	3	B DB
Amphenol CONEC 164A17029X	3	Polybutylene Terephthalate (PBT) Glass Filled	Signal			60 VDC	Copper Alloy	D-Sub High Density	Free Hanging (In-Line)	Flash	Black	UL94 V-0	Receptacle Female Sockets	Gold	22 AWG	44	-55 °C	125 °C	Housing/Shell (Unthreaded)	3 A			3	B DB
Amphenol CONEC 164A17009X	3	Polybutylene Terephthalate (PBT) Glass Filled	Signal			60 VDC	Copper Alloy	D-Sub High Density	Free Hanging (In-Line)	Flash	Black	UL94 V-0	Receptacle Female Sockets	Gold	22 AWG	15	-55 °C	125 °C	Housing/Shell (Unthreaded)	3 A				DE E	1	High Density
Amphenol CONEC 164A17059X	3	Polybutylene Terephthalate (PBT) Glass Filled	Signal			60 VDC	Copper Alloy	D-Sub High Density	Free Hanging (In-Line)		Black	UL94 V-0	Receptacle Female Sockets	Gold		15	-55 °C	125 °C	Cable Side	3 A	8 çin	0.203 çm		DE E	1	High Density
Amphenol CONEC 164A17049X		Polybutylene Terephthalate (PBT) Glass Filled	Signal			60 VDC	Copper Alloy	D-Sub High Density	Free Hanging (In-Line)		Black	UL94 V-0	Receptacle Female Sockets	Gold	22 AWG	78	-55 °C	125 °C	Housing/Shell (Unthreaded)	3 A	8 çin	0.203 çm
Amphenol CONEC 164A17099X		Polybutylene Terephthalate (PBT) Glass Filled	Signal			60 VDC	Copper Alloy	D-Sub High Density	Free Hanging (In-Line)		Black	UL94 V-0	Receptacle Female Sockets	Gold		78	-55 °C	125 °C	Cable Side	3 A	8 çin	0.203 çm
Amphenol CONEC 164A17039X	3	Polybutylene Terephthalate (PBT) Glass Filled	Signal	4		60 VDC	Copper Alloy	D-Sub High Density	Free Hanging (In-Line)	Flash	Black	UL94 V-0	Receptacle Female Sockets	Gold	22 AWG	62	-55 °C	125 °C	Housing/Shell (Unthreaded)	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.24
		10	$ 14.95
		25	$ 14.16
		50	$ 13.96
		100	$ 12.32
		250	$ 11.50
		500	$ 11.25

Description

General part information

164A170 Series

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
